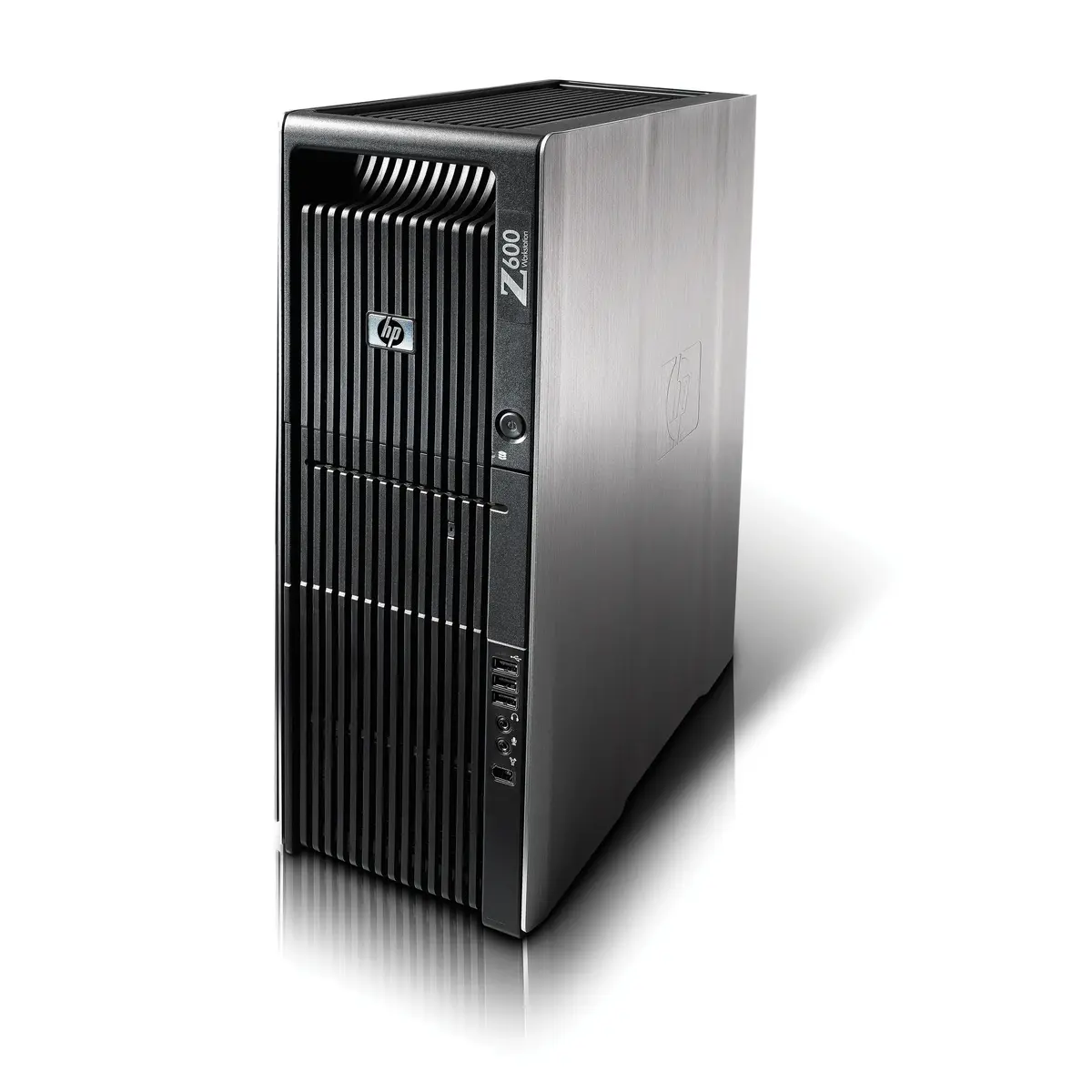

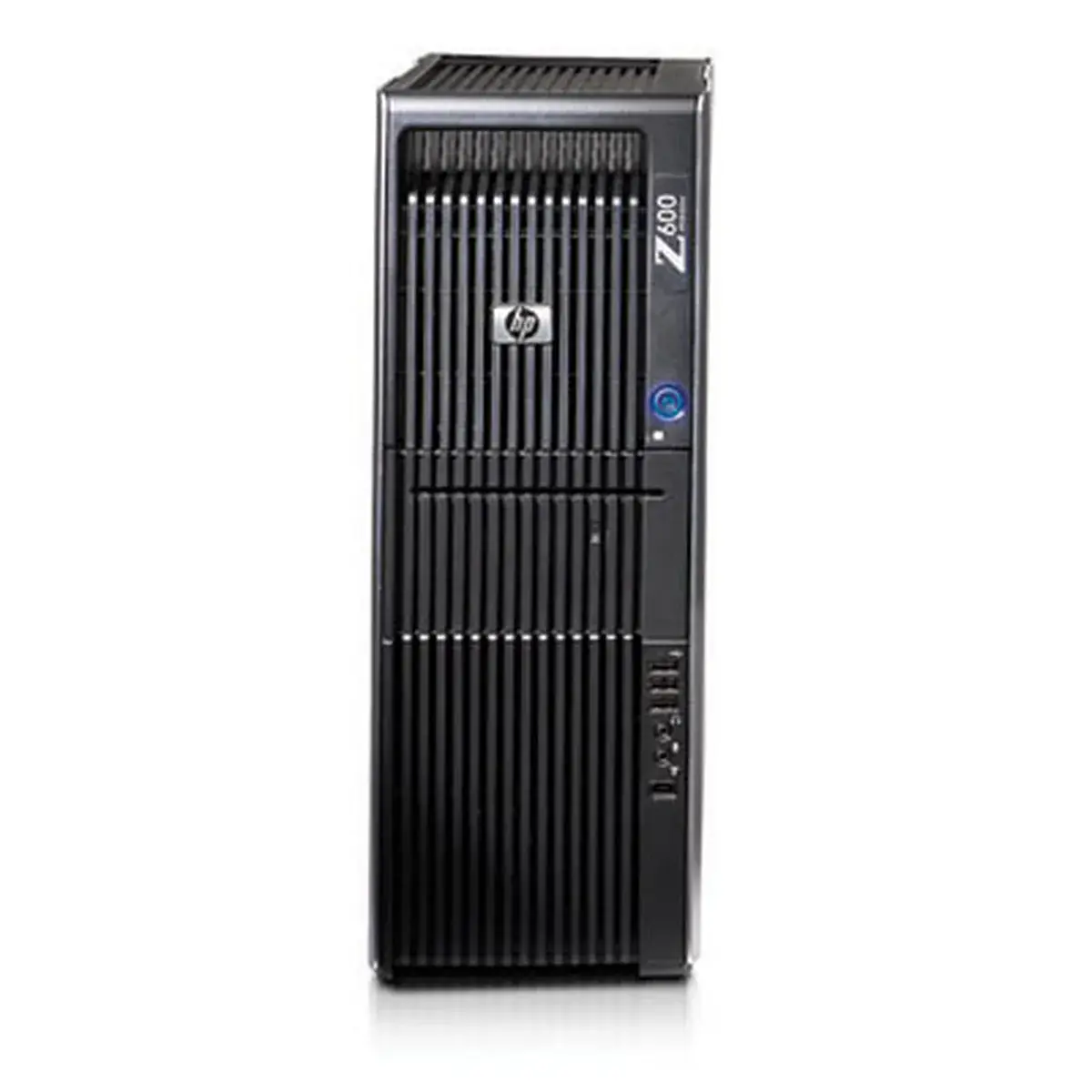

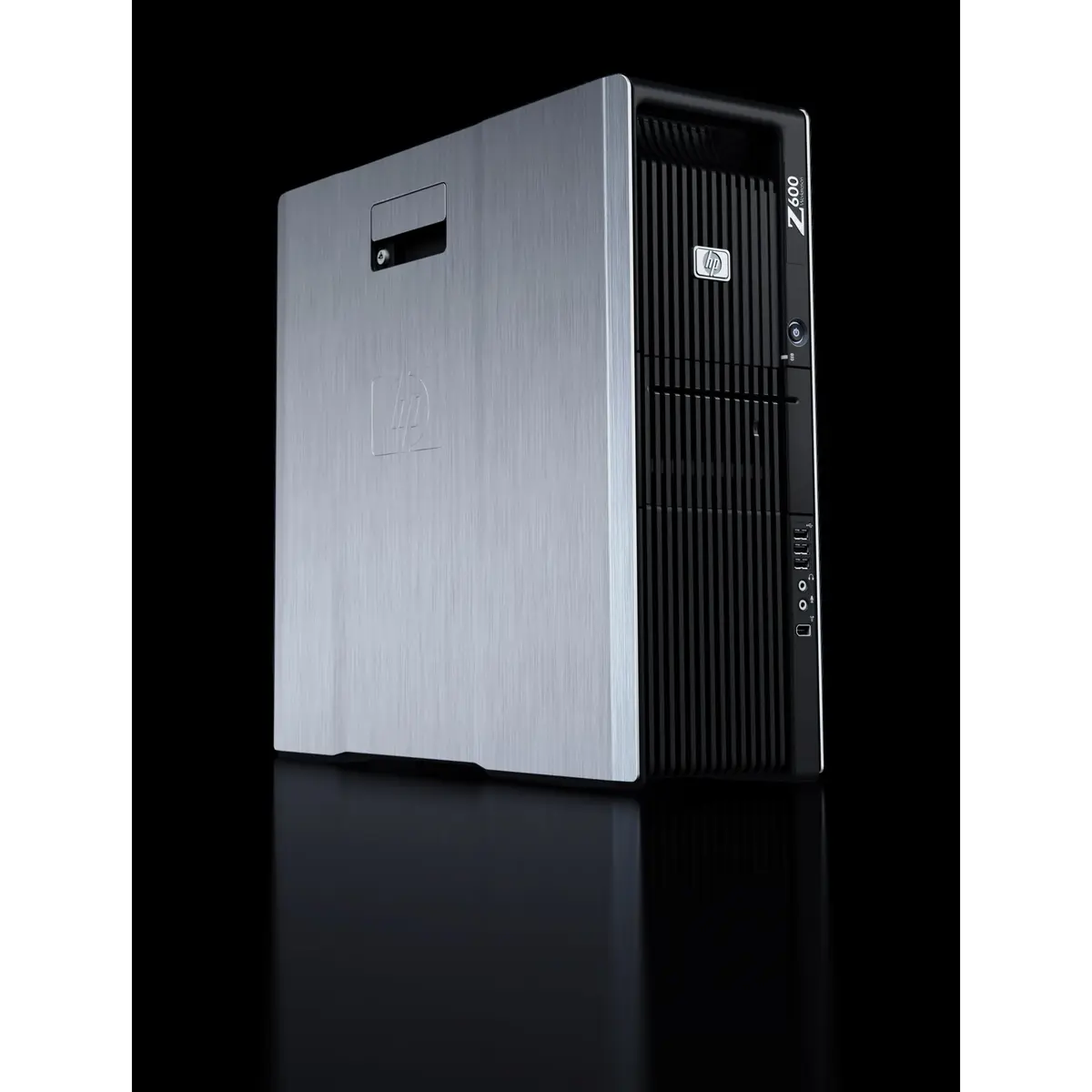

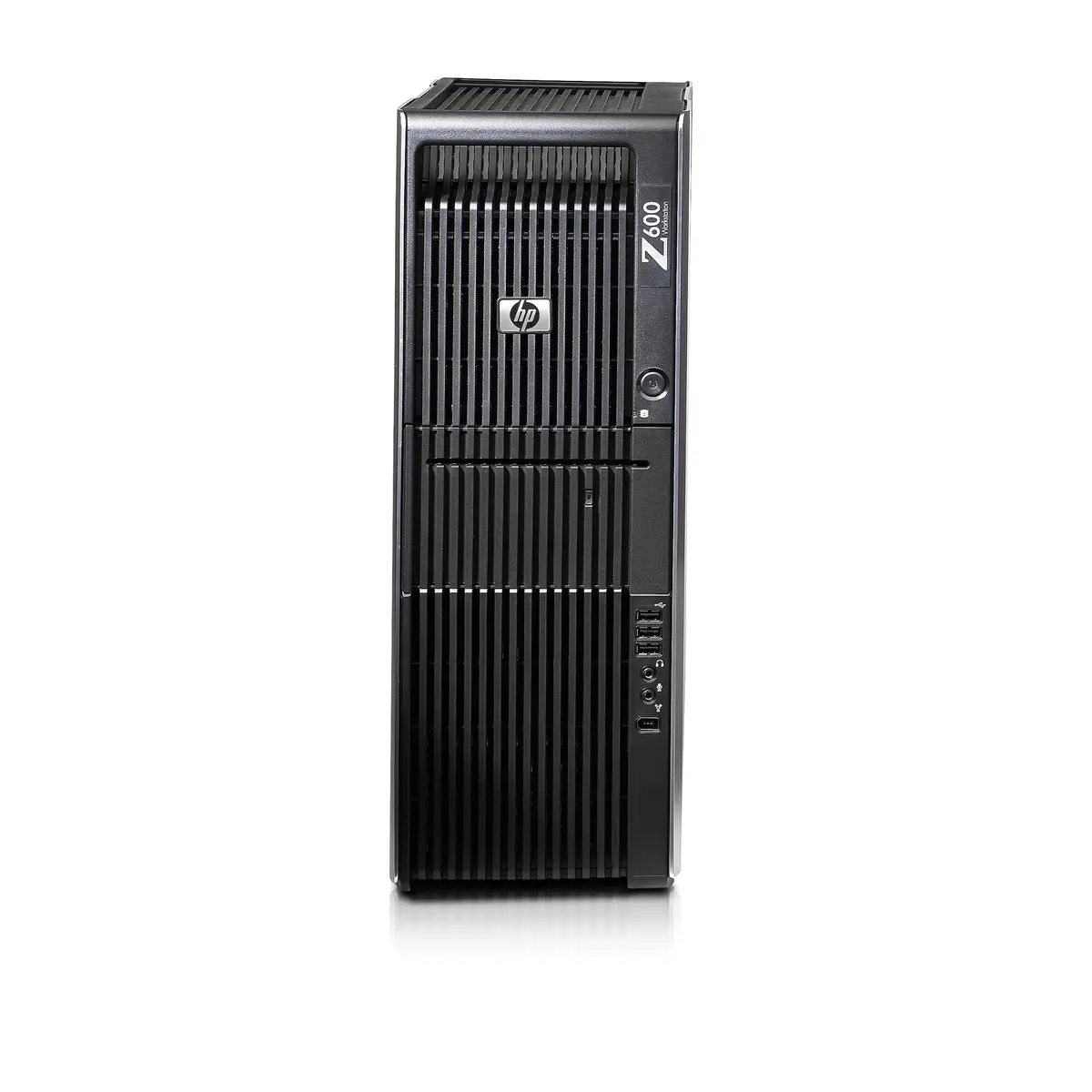

HP Z600 Workstation

HP Z600 Workstation

HP 600 workstation is equipped with an Intel® Xeon® E5620 processor running at 2.4 GHz, featuring four cores and eight threads. It supports up to 288GB of RAM, with current configuration set at 3GB in three separate slots. The system has a maximum supported bus frequency of 5.86 GT/s through QPI connections.

The workstation comes with Windows XP Professional operating on a 32-bit architecture, providing compatibility for legacy applications. Powering this powerful machine is a 650W power supply unit designed specifically for high-performance workstations. For storage needs, it includes one hard disk drive (HDD) with a capacity of 320GB, spinning at 7200 RPM using Serial ATA interface.

An optical drive type DVD Super Multi allows users to burn and read media files efficiently. Connectivity options are provided via multiple RJ-45 Ethernet ports, USB 2.0 ports, PS/2 ports, microphone input/output, line-in, and various other features such as RAID support and integrated audio output capabilities.

Main specifications

  • Model: HP 600 Intel® Xeon® 5000 Sequence E5620 3 GB DDR3-SDRAM Windows XP Professional Minitower Workstation Black
  • Processor: E5620
  • CPU frequency: 2.4 GHz
  • sku: KK646EA
  • Processor family: Intel® Xeon® 5000 Sequence
  • Processor manufacturer: Intel
  • Processor cores: 4
  • Processor threads: 8

Additional information

Processor family

Intel® Xeon® 5000 Sequence

Processor manufacturer

Intel

Processor model

E5620

Processor frequency

2.4 GHz

Processor cores

4

Processor threads

8

Processor boost frequency

2.66 GHz

Processor socket

Socket B (LGA 1366)

Processor cache

12 MB

Processor cache type

Smart Cache

System bus rate

5.86 GT/s

Bus type

QPI

FSB Parity

No

Processor lithography

32 nm

Processor operating modes

64-bit

Processor series

Intel Xeon 5600 Series

Processor codename

Westmere EP

Thermal Design Power (TDP)

80 W

Tcase

77.6 °C

Number of processors installed

1

Stepping

B1

CPU multiplier (bus/core ratio)

18

Maximum internal memory supported by processor

288 GB

Memory types supported by processor

DDR3 800/1066

Memory clock speeds supported by processor

800,1066 MHz

Memory bandwidth supported by processor (max)

25.6 GB/s

ECC supported by processor

Yes

Internal memory

3 GB

Maximum internal memory

24 GB

Internal memory type

DDR3-SDRAM

Memory layout (slots x size)

3 x 1 GB

Memory slots

6x DIMM

Memory clock speed

1333 MHz

ECC

Yes

Memory channels

Triple-channel

Optical drive type

DVD Super Multi

Number of HDDs installed

1

HDD capacity

320 GB

HDD interface

SATA

HDD speed

7200 RPM

Card reader integrated

No

RAID levels

0, 1, 5, 10

USB 2.0 ports quantity

9

PS/2 ports quantity

2

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes

Headphone outputs

1

Line-in

Yes

PCI Express x1 slots

1
