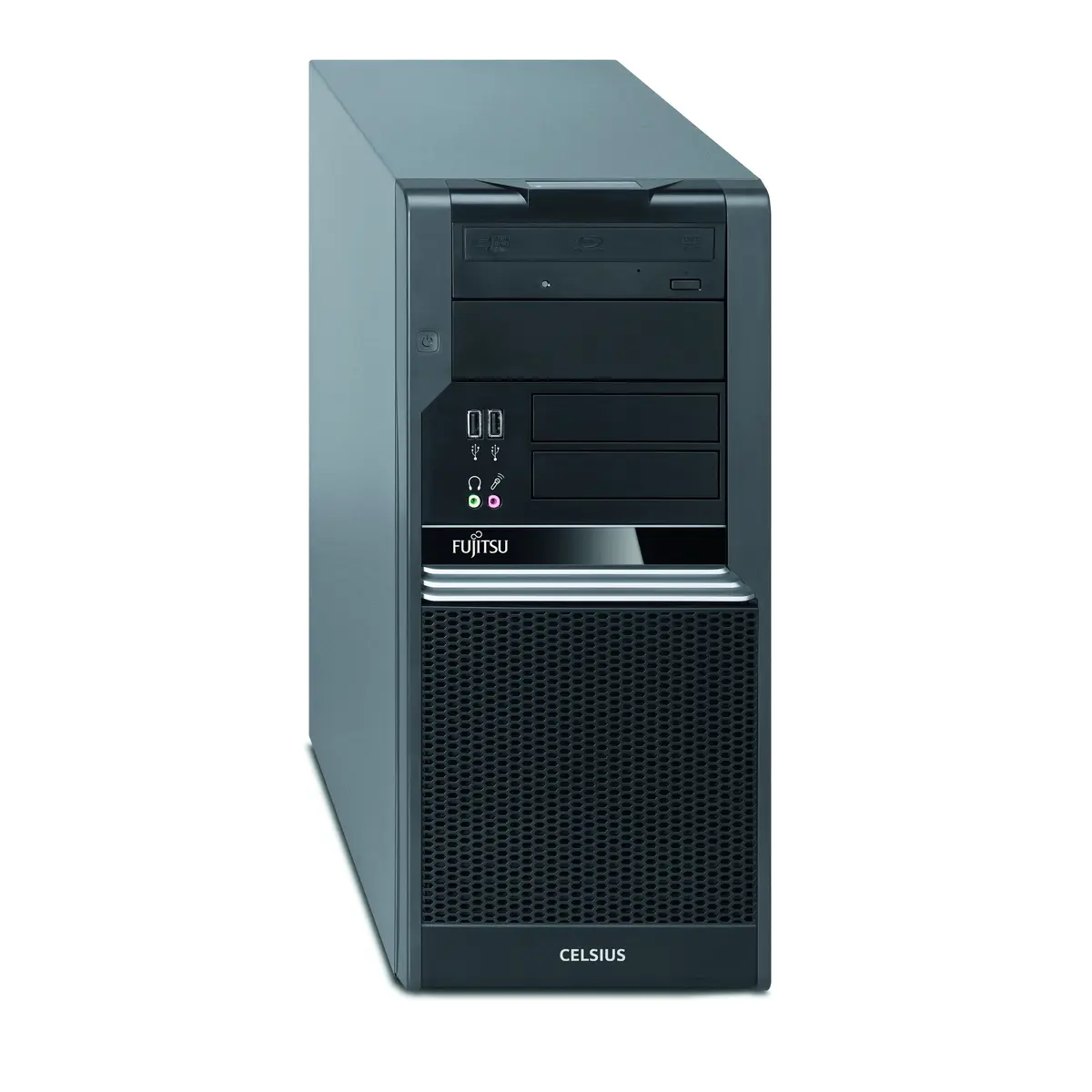

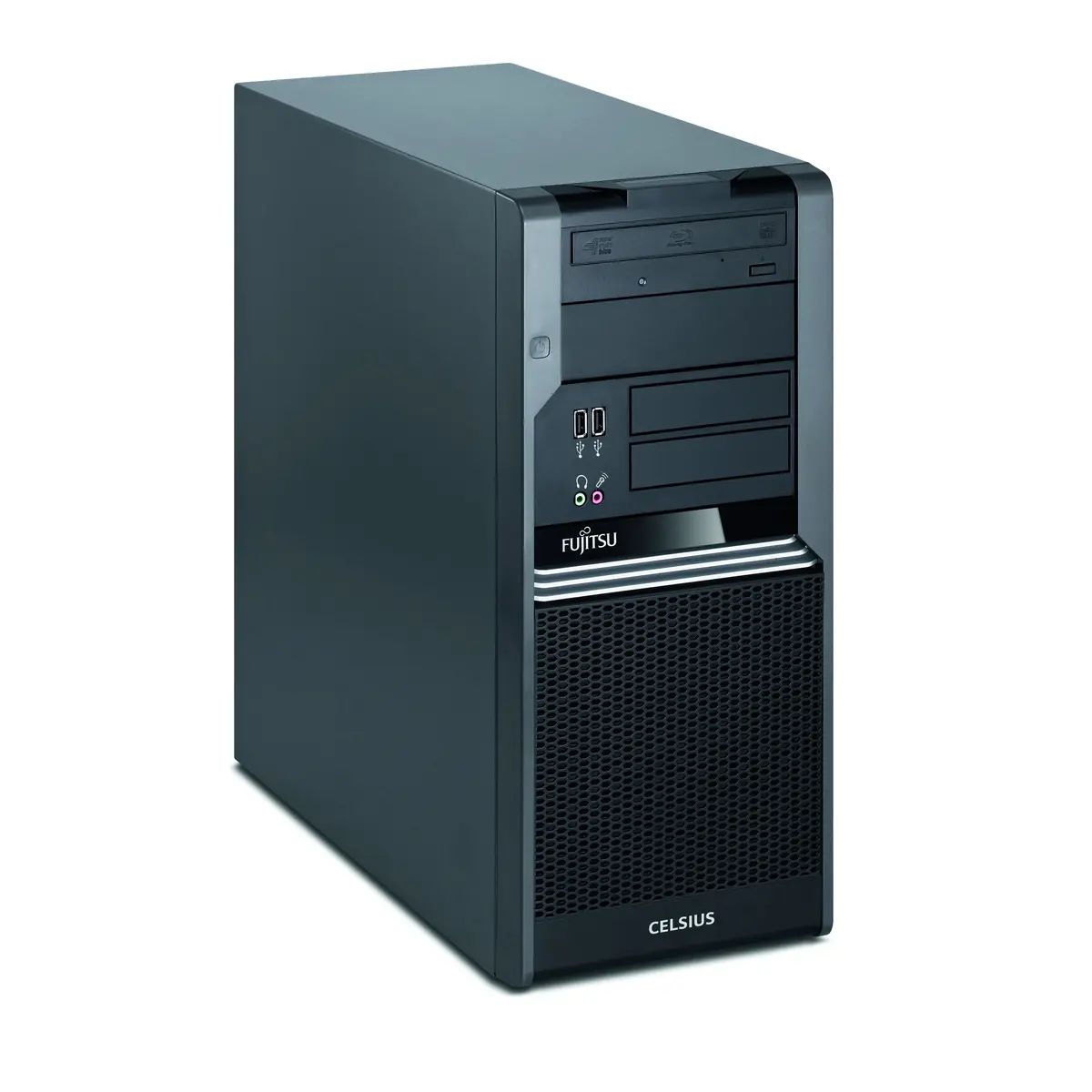

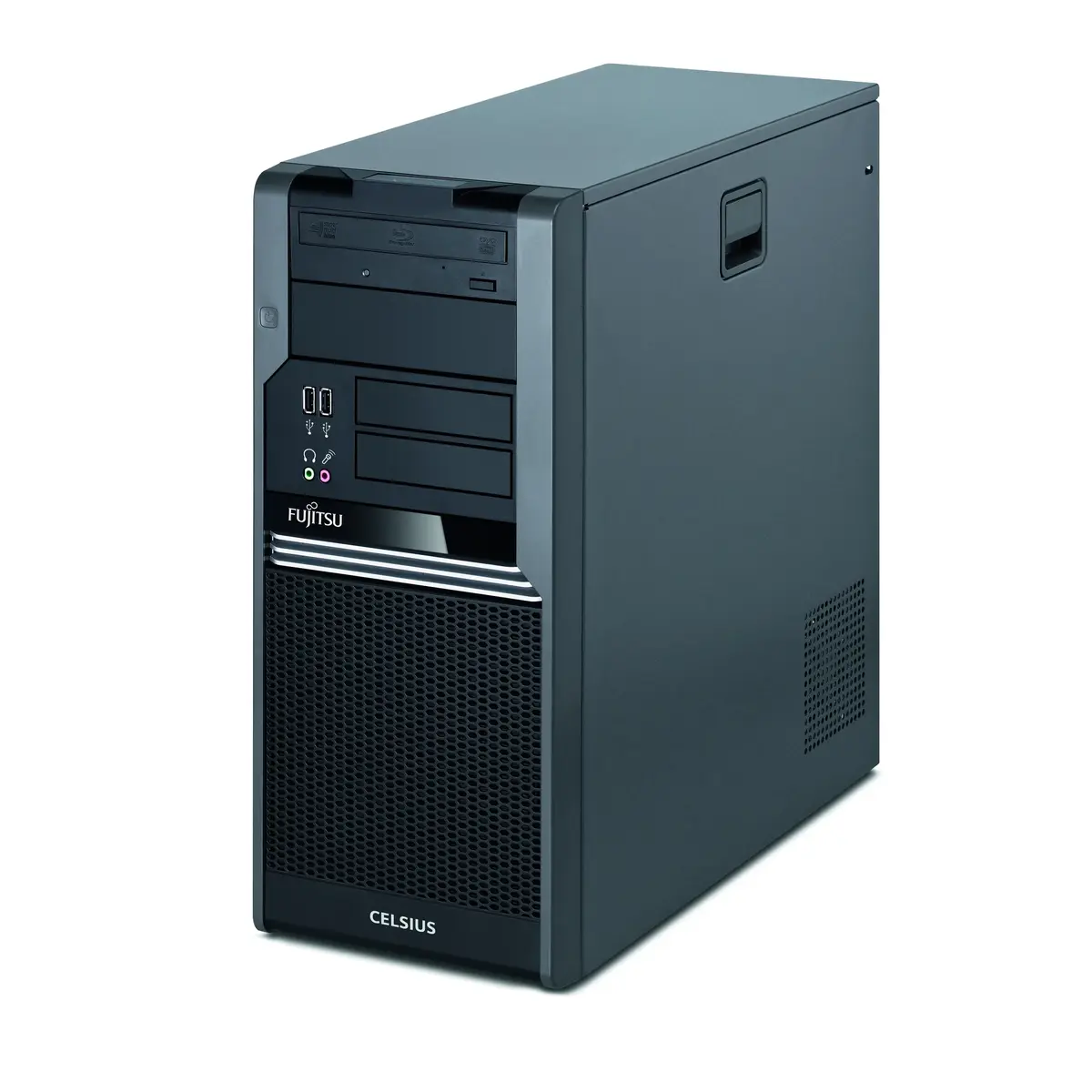

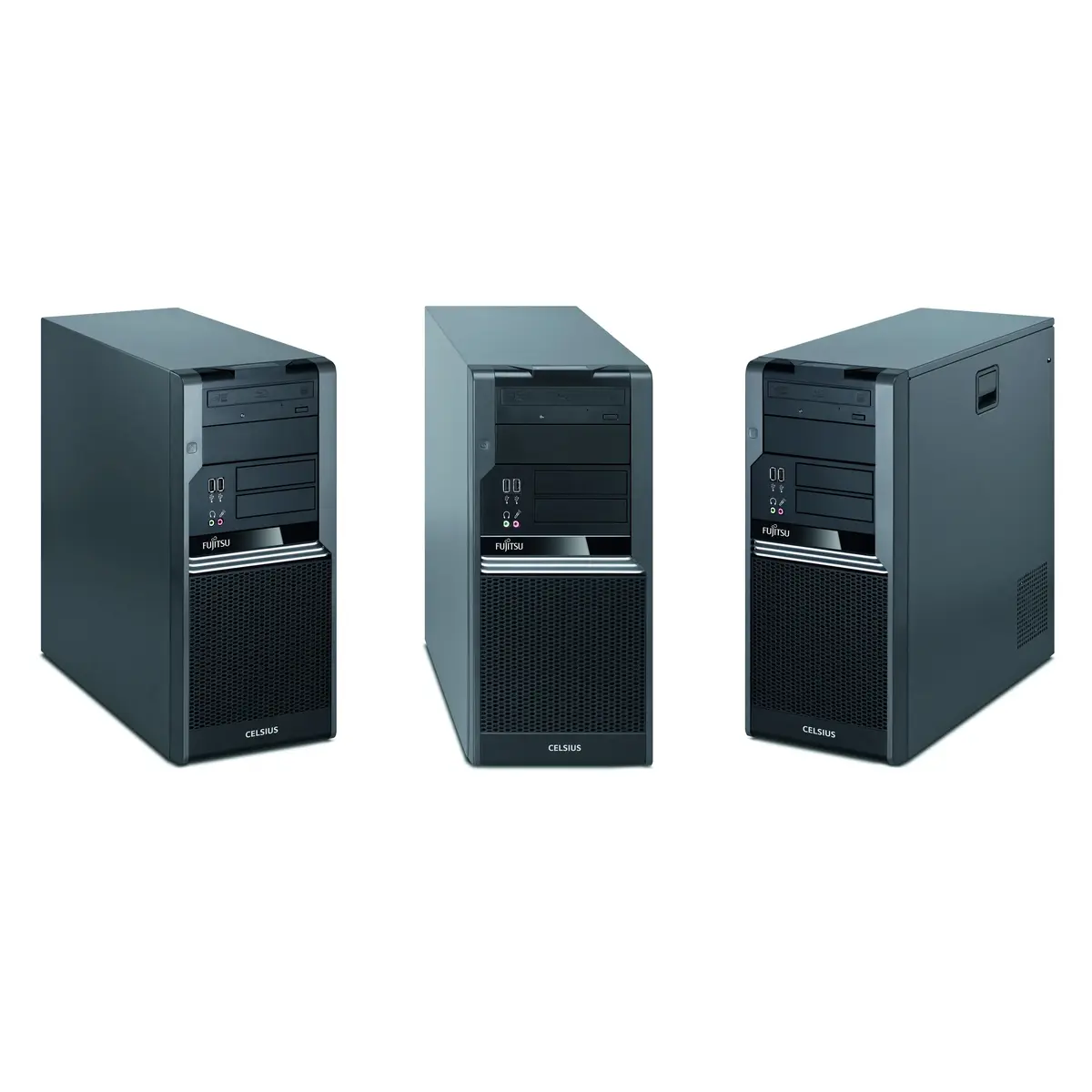

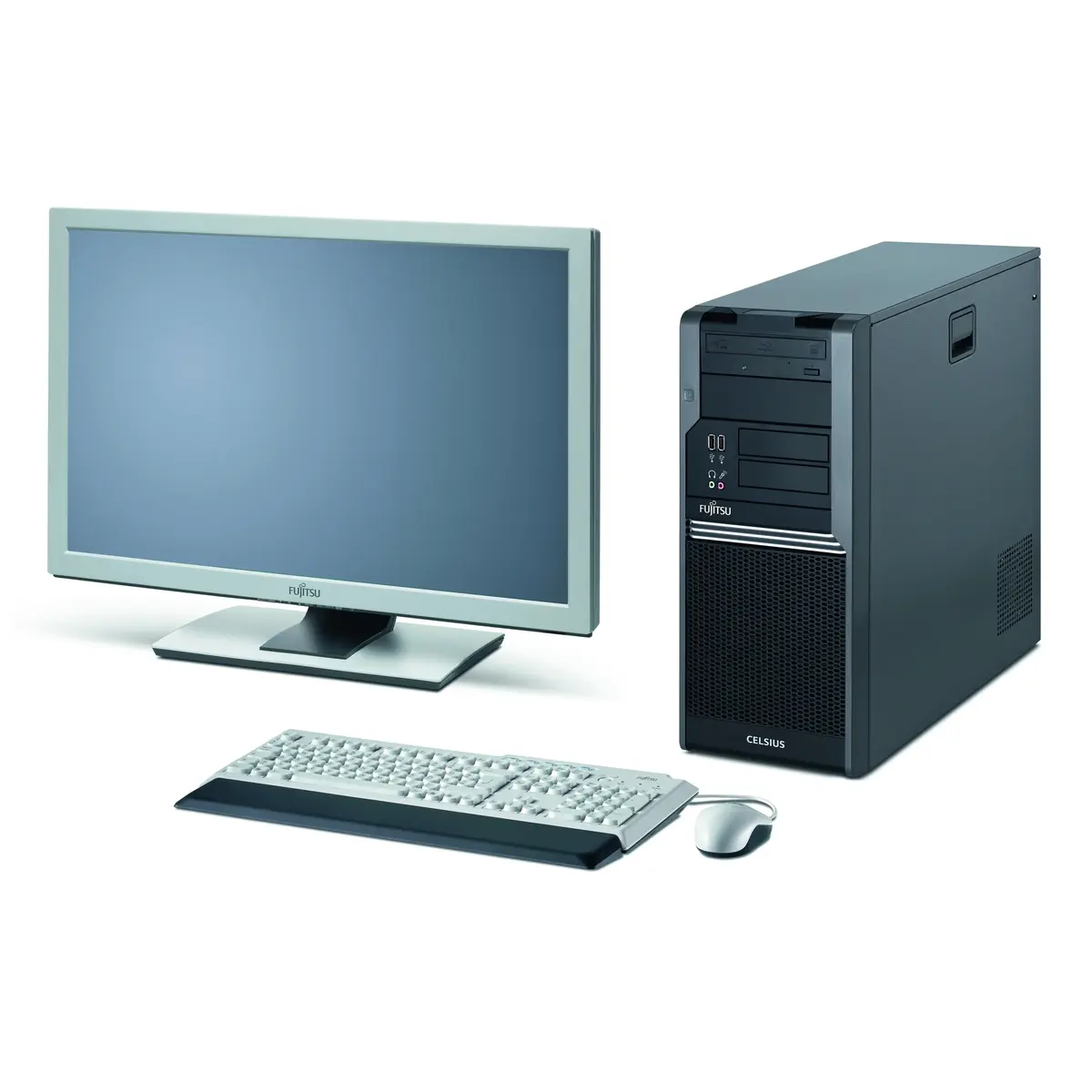

The Fujitsu CELSIUS W480 is an Intel® Xeon® 3000 Sequence-based workstation designed for professional use. It features a powerful Intel® Xeon® X3430 processor running at 2.4 GHz with a boost frequency up to 2.8 GHz, supporting Smart Cache technology which enhances performance through improved cache efficiency.

Equipped with 8 GB of DDR3-SDRAM operating at 1333 MHz, it supports dual-channel memory configuration, providing ample system resources for demanding tasks. The workstation comes with Windows 7 Professional pre-installed, offering reliable software support for various applications. With a power supply rated at 500W, this tower chassis delivers sufficient energy for extended operation without frequent recharging.

Its black color adds a sleek aesthetic appeal suitable for office environments. For connectivity, the Fujitsu CELSIUS W480 includes multiple ports such as 10 USB 2.0 ports, two DisplayPort outputs, two PS/2 ports, one RJ-45 Ethernet port, and a microphone input. Additionally, it has integrated card reader functionality, enhancing its versatility by allowing easy data transfer between devices.

Product highlights

  • Model: Fujitsu CELSIUS W480 Intel® Xeon® 3000 Sequence X3430 8 GB DDR3-SDRAM Windows 7 Professional Tower Workstation Black
  • Processor: X3430
  • CPU frequency: 2.4 GHz
  • sku: VFY:W4800WF01NL
  • Processor family: Intel® Xeon® 3000 Sequence
  • Processor manufacturer: Intel
  • Processor cores: 4
  • Processor threads: 4

Additional information

Processor family

Intel® Xeon® 3000 Sequence

Processor manufacturer

Intel

Processor model

X3430

Processor frequency

2.4 GHz

Processor cores

4

Processor threads

4

Processor boost frequency

2.8 GHz

Processor socket

LGA 1156 (Socket H)

Processor cache

8 MB

Processor cache type

Smart Cache

System bus rate

2.5 GT/s

Bus type

DMI

FSB Parity

No

Processor lithography

45 nm

Processor operating modes

64-bit

Processor series

Intel Xeon 3400 Series

Processor codename

Lynnfield

Thermal Design Power (TDP)

95 W

Tcase

72.7 °C

PCI Express slots version

2.0

Maximum number of PCI Express lanes

16

PCI Express configurations

1×16, 2×8, 4×4

Number of processors installed

1

Number of Processing Die Transistors

774 M

Processing Die size

296 mm²

Stepping

B1

CPU multiplier (bus/core ratio)

18

Maximum internal memory supported by processor

32 GB

Memory types supported by processor

DDR3-SDRAM

Memory clock speeds supported by processor

800,1066,1333 MHz

Memory bandwidth supported by processor (max)

21 GB/s

ECC supported by processor

Yes

Internal memory

8 GB

Maximum internal memory

16 GB

Internal memory type

DDR3-SDRAM

Memory layout (slots x size)

2 x 4 GB

Memory clock speed

1333 MHz

ECC

Yes

Memory channels

Dual-channel

Number of HDDs installed

2

HDD capacity

1 TB

HDD interface

SATA II

HDD speed

7200 RPM

Card reader integrated

Yes

Maximum graphics card memory

0.768 GB

USB 2.0 ports quantity

10

DisplayPorts quantity

2

PS/2 ports quantity

2

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes
