Dataflex Viewlite monitor arm – desk 122

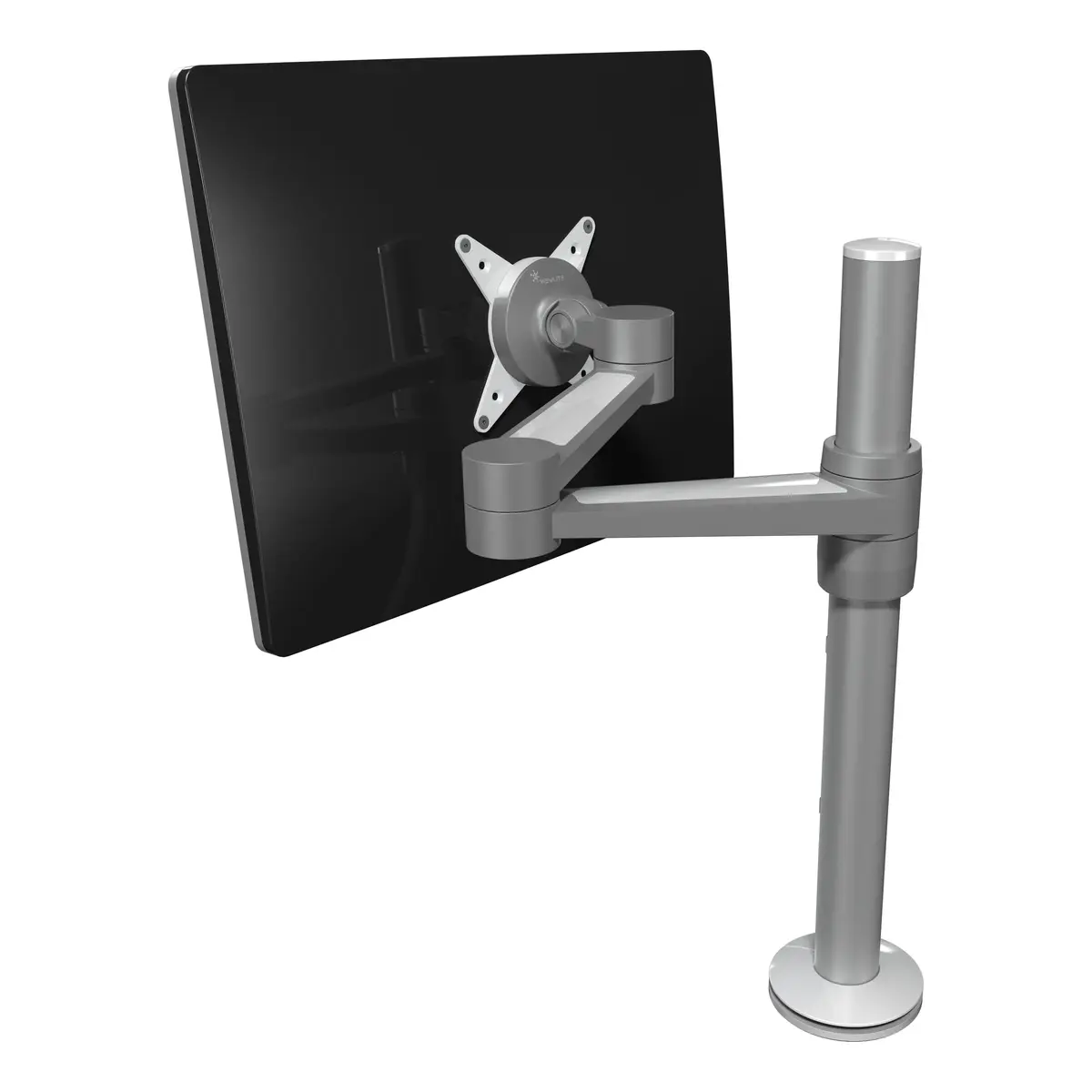

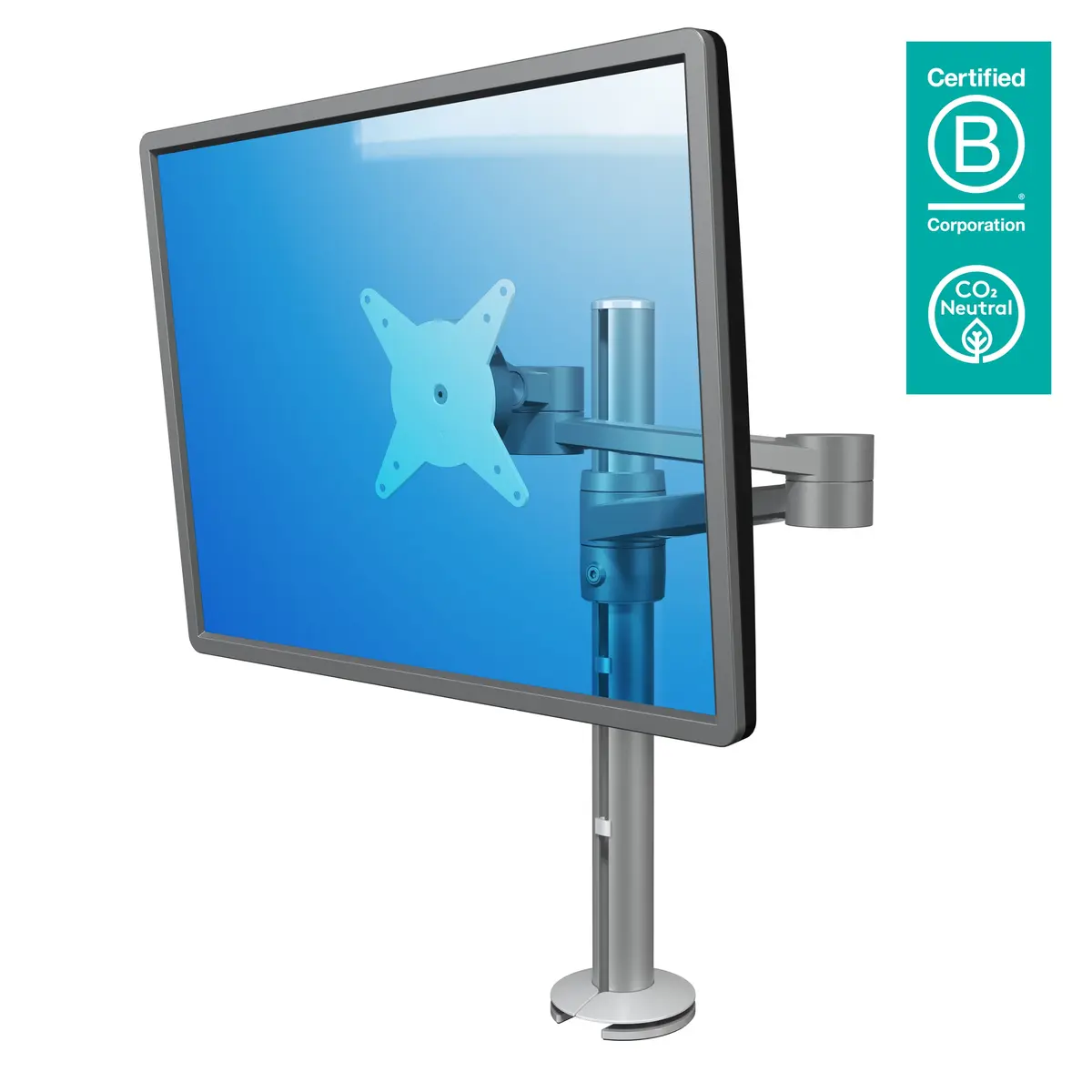

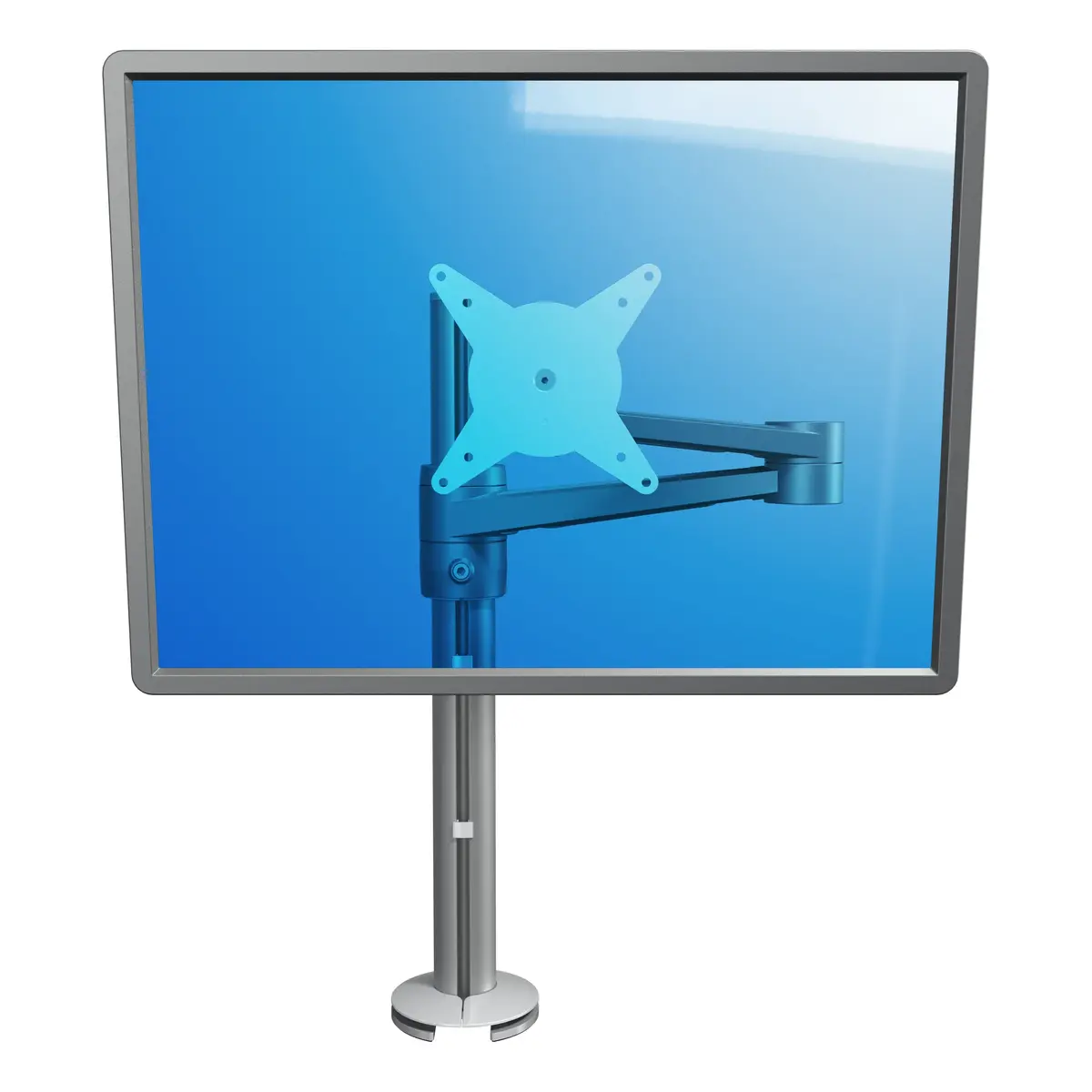

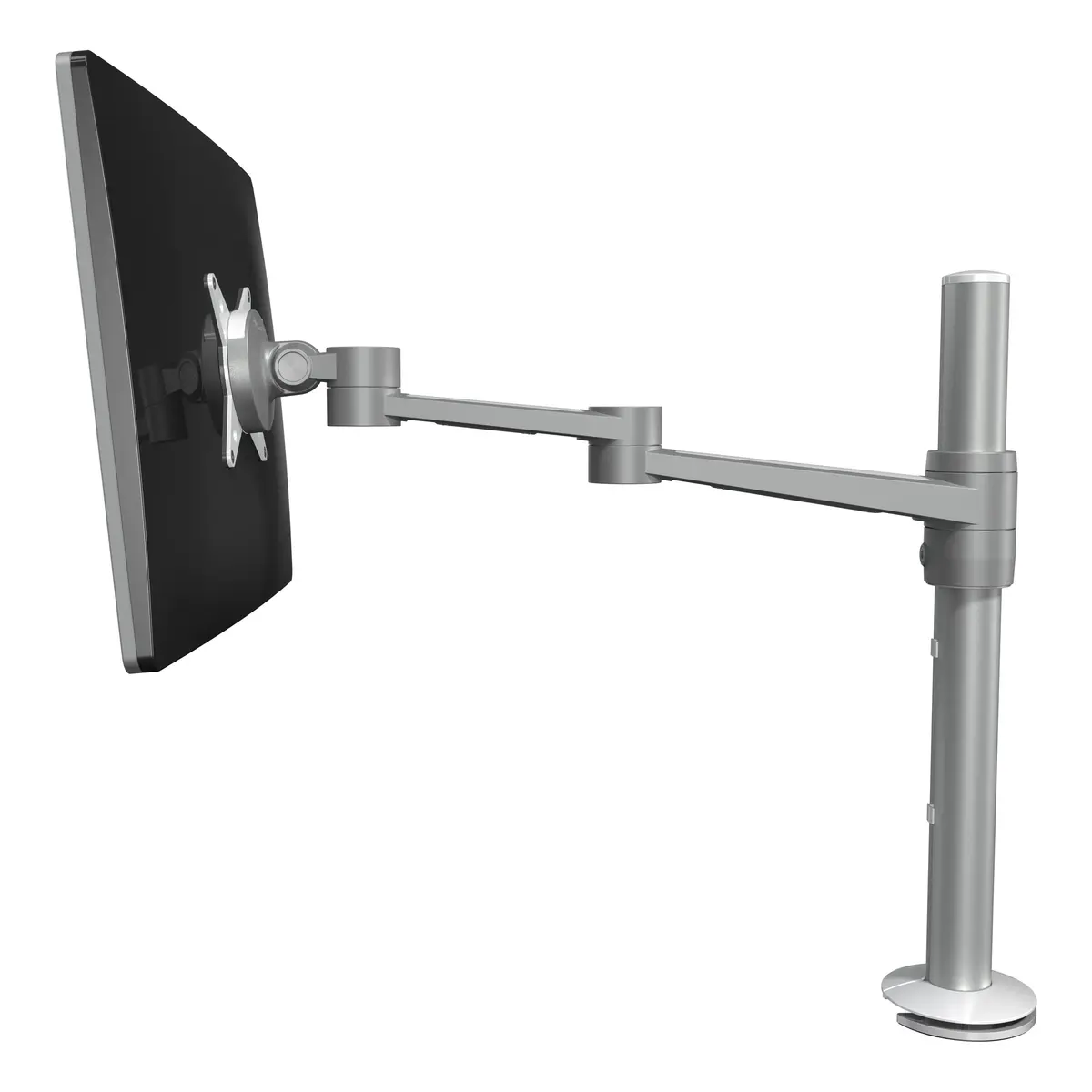

Dataflex Viewlite monitor arm – desk 122, Clamp/Bolt-through, 8 kg, 0 mm (0″), 61 cm (24″), 100 x 100 mm, Silver

Documentation:

SKU: 58.122 Category: Brand:

The Dataflex Viewlite monitor arm is designed for mounting on desks, offering flexibility in both vertical and horizontal positioning. It supports up to one display weighing no more than 8 kilograms, with screens ranging from virtually zero inches down to 61 centimeters wide. This versatile accessory includes features such as adjustable tilt angles (-55° to 90°), swivel capabilities (-180° range), and a manual height adjustment that allows users to raise their monitors between 155mm and 505mm above the desk surface.

The product comes equipped with clamp/bolt-through mounts suitable for various screen sizes, ensuring easy installation without requiring additional tools. Its compact dimensions make it ideal for small office spaces where space is limited but functionality is crucial. With its sturdy aluminum housing and built-in cable management system, this monitor arm provides durability while keeping cables organized neatly out of sight.

Whether you’re looking to enhance productivity at work or improve comfort during long hours spent working on your computer, the Dataflex Viewlite monitor arm offers a practical solution tailored specifically for desktop use. Additionally, being made from recycled materials aligns well with eco-friendly practices, making it an environmentally conscious choice among similar products available today.

Main specifications

  • Model: Dataflex Viewlite monitor arm – desk 122
  • Colour: Silver
  • Width: 100 mm
  • Depth: 501 mm
  • Height: 450 mm
  • Package weight: 4.11 kg
  • sku: 58.122
  • Number of displays supported: 1

Additional information

Number of displays supported

1

Maximum weight capacity (per display)

8 kg

Maximum screen size

61 cm (24")

Mounting type

Desk

Maximum weight capacity

8 kg

Minimum screen size

0 mm (0")

Minimum VESA mount

75 x 75 mm

Maximum VESA mount

100 x 100 mm

Mounting

Clamp/Bolt-through

Suitable for TV

No

Panel mounting interface

75 x 75,100 x 100 mm

Desk thickness (min)

5 mm

Desk thickness (max)

6 cm

Monitor height (max)

97.8 cm

Height adjustment

Yes

Height adjustment type

Manual

Height adjustment range

155 – 505 mm

Adjustable depth

Yes

Tilt adjustment

Yes

Tilt angle range

-55 – 90°

Swivel angle

-180°

Swivel angle range

-90 – 90°

Angle of rotation

360°

Number of pivot points

3

Number of arms

1

Cable management

Yes

Built-in gas spring

No

Built-in mechanical spring

No

Product colour

Silver

Housing material

Aluminium

Country of production

Taiwan

Easy to install

Yes

Width

100 mm

Depth

501 mm

Height

450 mm

Package width

610 mm

Package depth

265 mm

Package height

115 mm

Package weight

4.11 kg

Package type

Box

Clamp included

Yes

VESA mount included

Yes

Mounting kit

Yes

Manual

Yes

Screen size compatibility

24

Made with recycled materials

Yes

Harmonized System (HS) code

85299097

Shipping (inner) case width

61 cm

Shipping (inner) case length

26.5 cm

Shipping (inner) case height

11.5 cm
