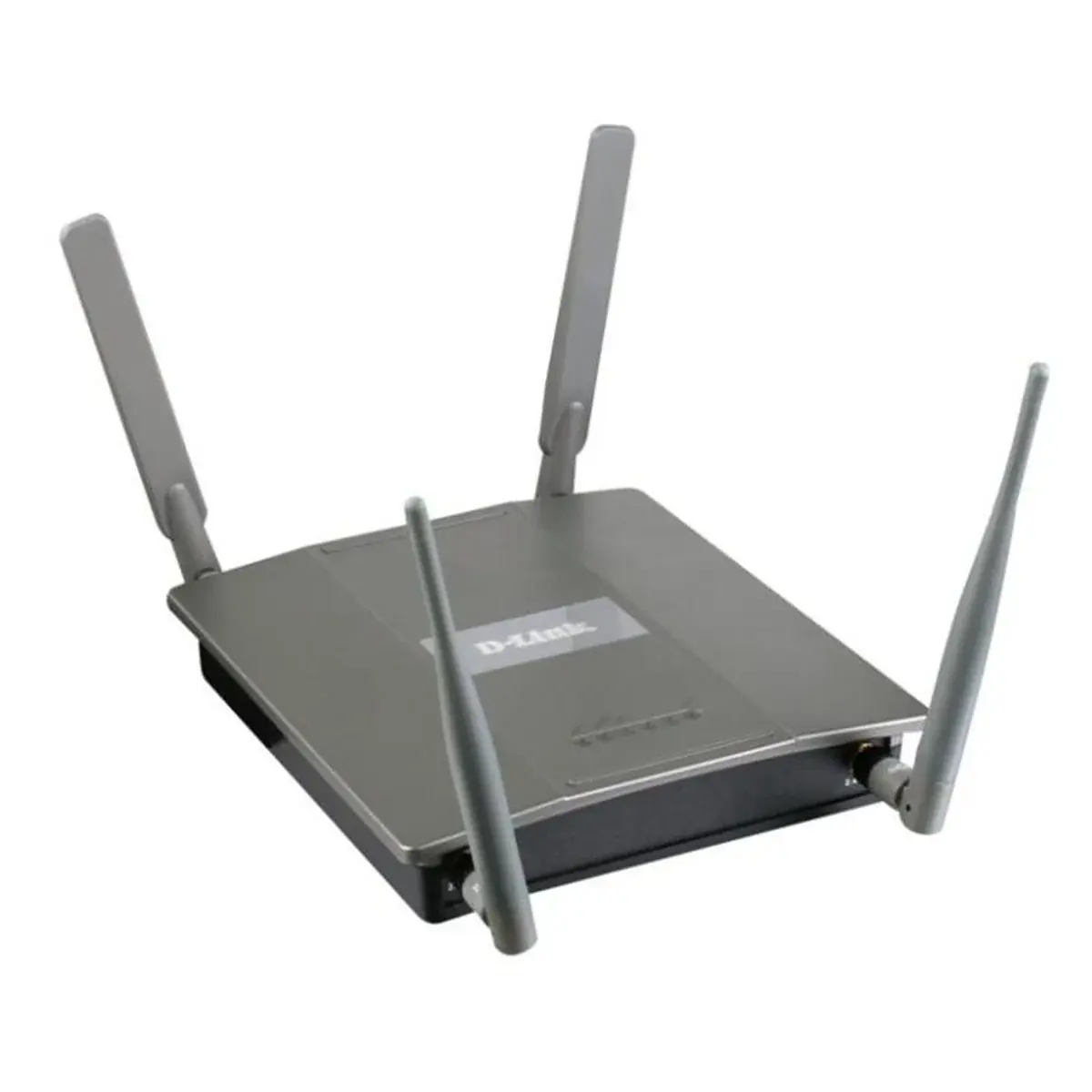

D-Link Wireless N Quadband Unified Access Point 300 Mbit/s Power over Ethernet (PoE)

The D-Link Wireless N Quadband Unified Access Point is designed to provide high-speed wireless network connectivity for various applications such as home offices, small businesses, and public hotspots. It supports data transfer rates up to 300 Mbit/s through its quad-band capabilities which cover both 2.4 GHz and 5 GHz frequency bands.

This access point uses Power over Ethernet (PoE) functionality allowing it to be powered by an existing PoE switch without requiring additional power sources. The device features multiple management protocols including HTTP/HTTPS, SSH, SNMP, Syslog, Telnet, enabling administrators to monitor and control the system remotely via web browsers or command-line interfaces.

With one RJ-45 Ethernet LAN port, users can connect directly to the local area network while also benefiting from the dual band support that enhances performance in dense environments where interference might otherwise occur. Additionally, the inclusion of SMA antenna connectors allows flexibility when positioning antennas for optimal signal reception throughout the coverage area.

Main specifications

• Model: D-Link Wireless N Quadband Unified Access Point 300 Mbit/s Power over Ethernet (PoE)
• Weight: 1.02 kg
• Dimensions (W×D×H): 190.5 x 198.8 x 36.8 mm
• Typical power consumption: 12 W
• sku: DWL-8600AP
• Maximum data transfer rate: 300 Mbit/s
• Cabling technology: 10/100/1000Base-T(X)
• Modulation: DBPSK, DQPSK, DSSS, OFDM
