be quiet! Straight Power E9 CM power supply unit 680 W 20+4 pin ATX ATX Black

be quiet! Straight Power E9 CM, 680 W, 100 – 240 V, 750 W, 50 – 60 Hz, 5 – 10 A, +12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V

Documentation:

SKU: BN199 Category: Brand:

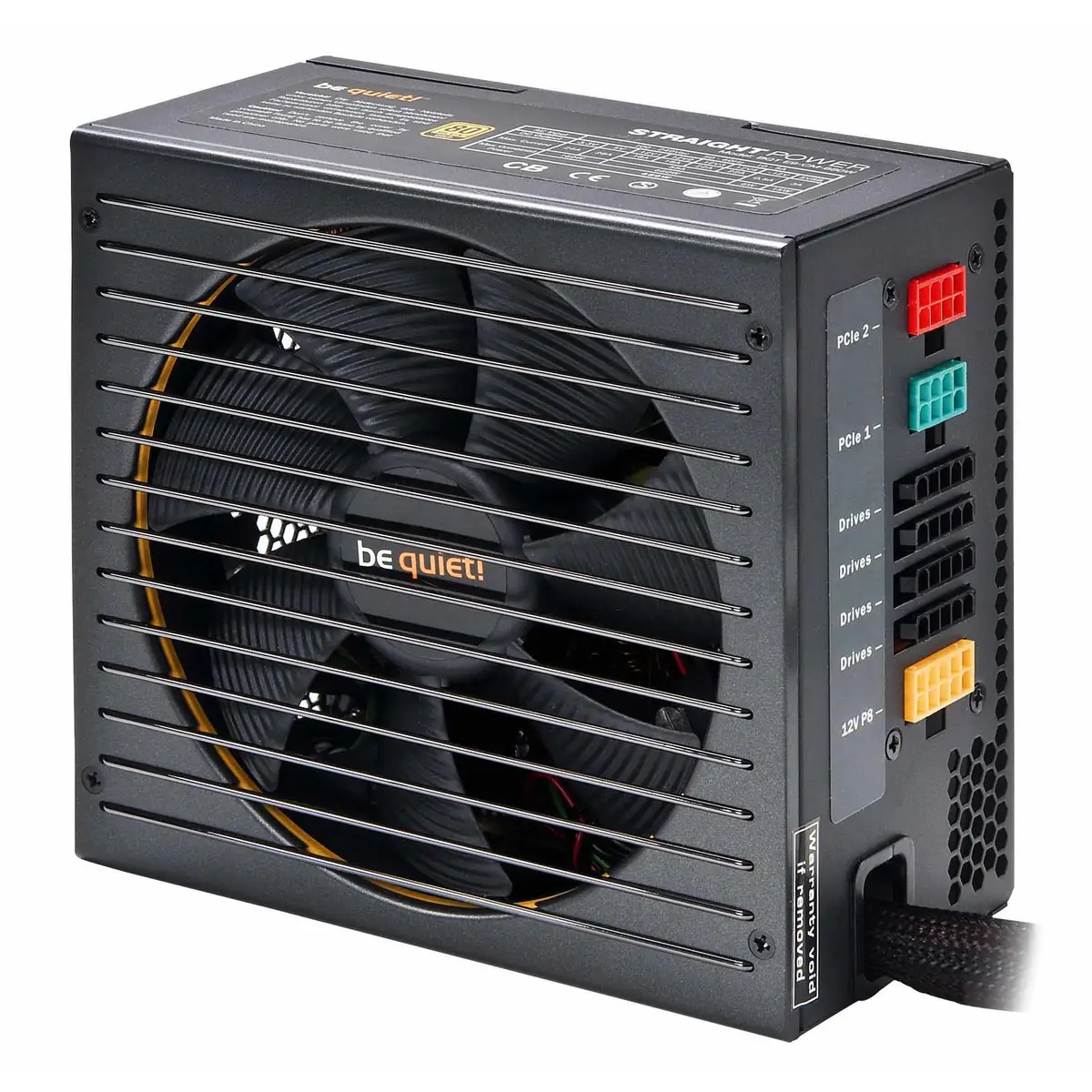

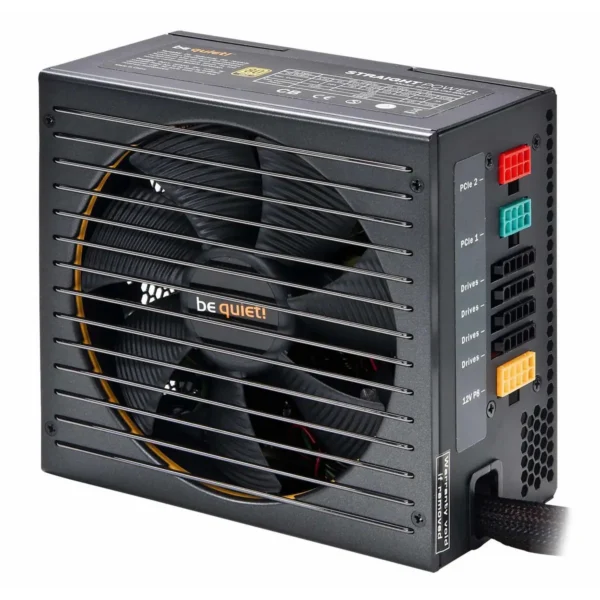

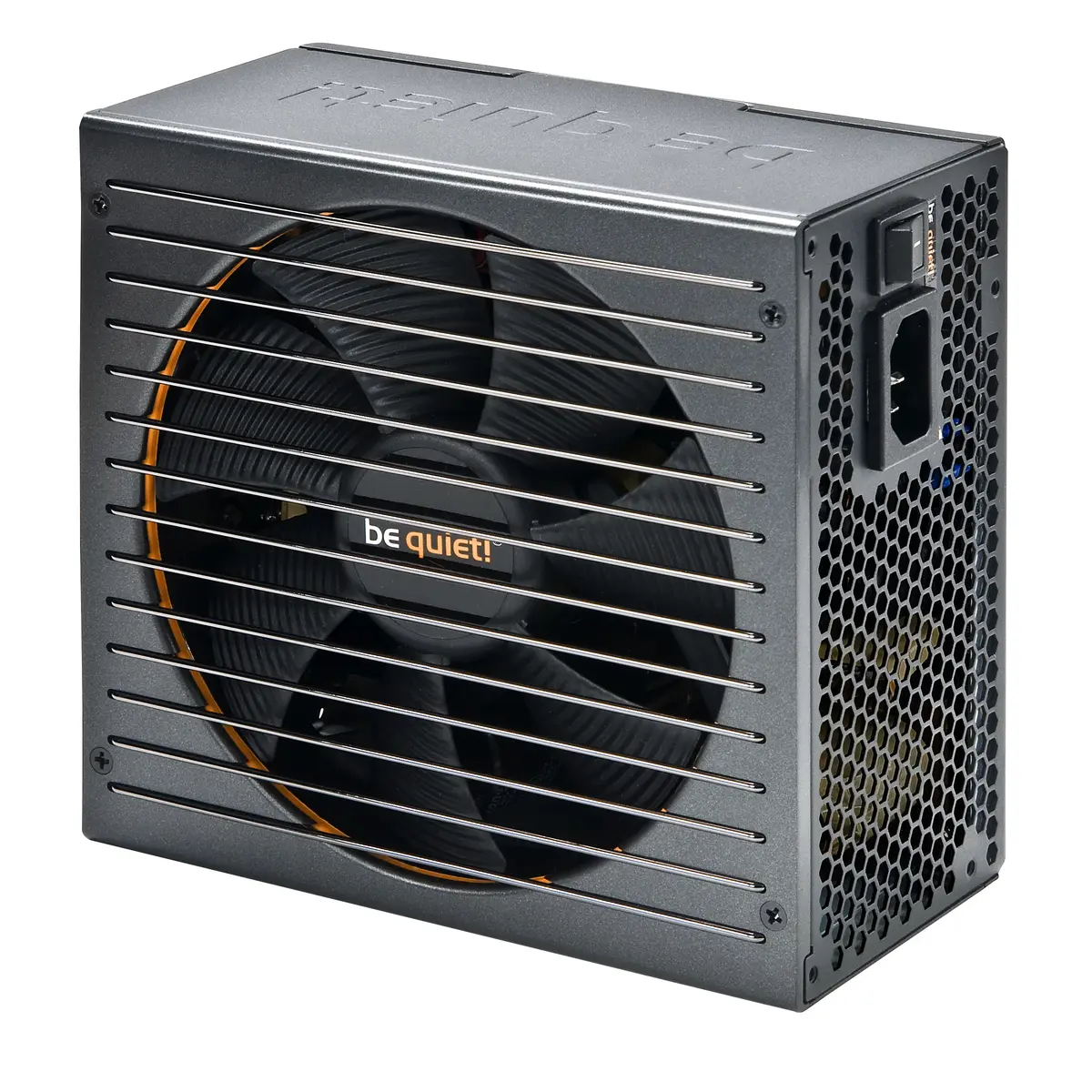

The be quiet! Straight Power E9 CM is an efficient and reliable power supply unit designed specifically for PCs. With a total power capacity of 680 W, it can handle demanding workloads without compromising performance.

It features a semi-modular cabling design that simplifies cable management while maintaining flexibility in wiring configurations. The AC input voltage range covers from 100 to 240 V, ensuring compatibility across various regions worldwide. Its peak power capability reaches up to 750 W, providing ample power during high-demand scenarios.

Equipped with an active cooling system including a 13.5 cm fan, this PSU offers effective heat dissipation even under heavy loads. Certified by CE, CB, TÜV, and Semko, it meets stringent safety standards globally. Additionally, it adheres to RoHS directives, emphasizing environmental responsibility.

Technical details

  • Model: be quiet! Straight Power E9 CM power supply unit 680 W 20+4 pin ATX ATX Black
  • Colour: Black
  • Width: 150 mm
  • Depth: 160 mm
  • Height: 86 mm
  • Noise level: 23.6 dB
  • sku: BN199
  • Total power: 680 W

Additional information

Total power

680 W

AC input voltage

100 – 240 V

Peak power

750 W

AC input frequency

50 – 60 Hz

Input current

5 – 10 A

Maximum input current (@110V)

+12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V

Power factor

0.99

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

160 W

Combined power (+12V)

660 W

Combined power (+5V)

160 W

Max output current (+3.3V)

24 A

Max output current (-12V)

0.5 A

Max output current (+12V1)

18 A

Max output current (+12V2)

18 A

Max output current (+12V3)

22 A

Max output current (+12V4)

22 A

Max output current (+5V)

28 A

Max output current (+5Vsb)

3 A

Hold time

19 ms

Efficiency

93%

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Motherboard power connector

20+4 pin ATX

Peripheral (Molex) power connectors (4-pin)

6

Number of SATA power connectors

9

PCI Express power connectors (6+2 pin)

4

CPU P4 connector (4-pin)

1

CPU power connector (4+4 pin)

Yes

Floppy drive power connector

1

Cabling type

Semi-Modular

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Gold

ATX version

2.31

EPS version

2.92

Noise level

23.6 dB

Bearing technology

FDB

Mean time between failures (MTBF)

300000 h

Product colour

Black

Cooling type

Active

Fan diameter

13.5 cm

Number of fans

1 fan(s)

Fan speed

1390

Operating temperature (T-T)

0 – 40 °C

Compliance certificates

RoHS

Certification

CE, CB, TÜV, Semko (S)

Width

150 mm

Depth

160 mm

Height

86 mm
