be quiet! Pure Power L8 CM power supply unit 430 W 20+4 pin ATX ATX Black

be quiet! Pure Power L8 CM, 430 W, 100 – 240 V, 480 W, 50 – 60 Hz, 4 – 8 A, +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V

Documentation:

SKU: BN180 Category: Brand:

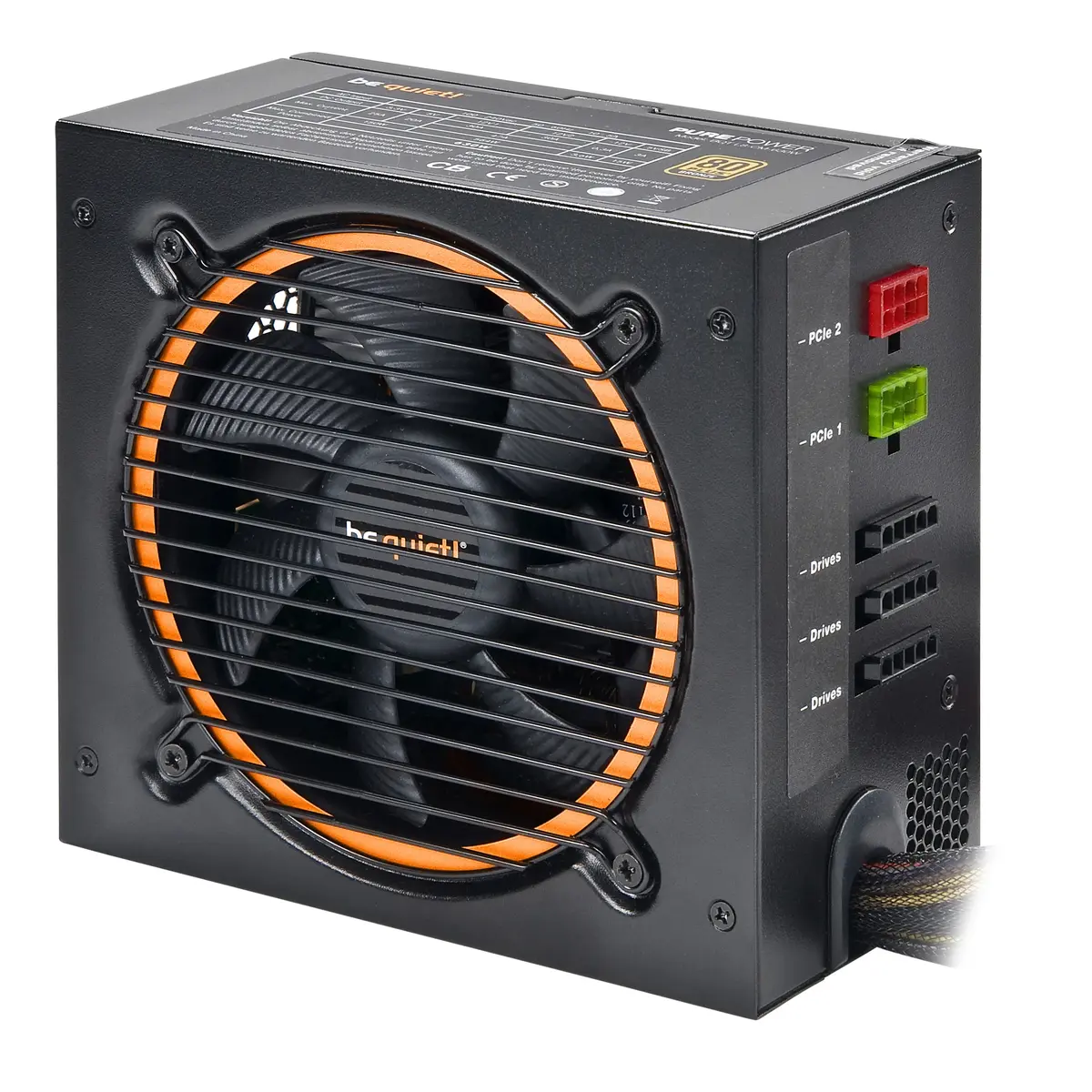

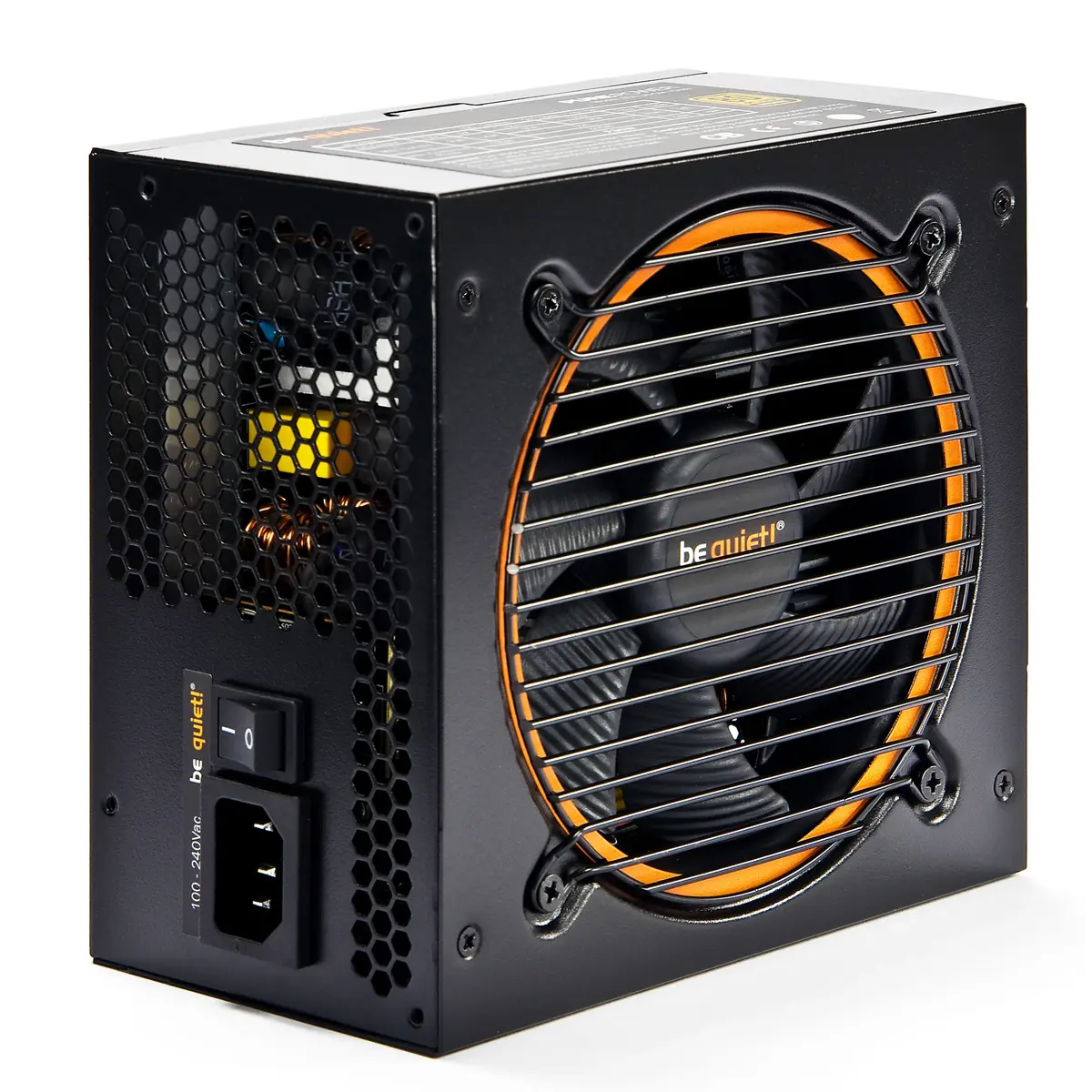

The be quiet! Pure Power L8 CM is an efficient power supply unit designed for PCs. It boasts a total power output capacity of 430 watts, capable of handling peak loads up to 480 watts.

This PSU features a semi-modular cabling design that simplifies cable management while maintaining flexibility in wiring options. The product adheres to strict environmental standards, including compliance with RoHS directives, ensuring minimal use of hazardous substances during manufacturing processes.

Additionally, it meets various certifications such as ERPs, WEEE, CE, CB, and TUV, which validate its safety and performance across different regions and regulatory frameworks. With dimensions suitable for most ATX motherboards at 150mm width by 160mm depth and 86mm height, this power supply offers ample space within PC cases without compromising on efficiency.

Product highlights

  • Model: be quiet! Pure Power L8 CM power supply unit 430 W 20+4 pin ATX ATX Black
  • Colour: Black
  • Weight: 1.7 kg
  • Width: 150 mm
  • Depth: 160 mm
  • Height: 86 mm
  • Package weight: 2.45 kg
  • Noise level: 20.1 dB

Additional information

Total power

430 W

AC input voltage

100 – 240 V

Peak power

480 W

AC input frequency

50 – 60 Hz

Input current

4 – 8 A

Maximum input current (@110V)

+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V

Power factor

0.99

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

120 W

Combined power (-12V)

3.6 W

Combined power (+5V)

120 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

24 A

Max output current (-12V)

0.3 A

Max output current (+12V1)

22 A

Max output current (+12V2)

20 A

Max output current (+5V)

15 A

Max output current (+5Vsb)

3 A

Hold time

14 ms

Efficiency

88%

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Motherboard power connector

20+4 pin ATX

Peripheral (Molex) power connectors (4-pin)

3

Number of SATA power connectors

4

PCI Express power connectors (6-pin)

1

PCI Express power connectors (6+2 pin)

1

CPU power connector (4+4 pin)

Yes

Floppy drive power connector

1

Cabling type

Semi-Modular

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Bronze

ATX version

2.3

Noise level

20.1 dB

Mean time between failures (MTBF)

100000 h

Product colour

Black

Cooling type

Active

Fan diameter

12 cm

Number of fans

1 fan(s)

Fan speed

1229

Operating temperature (T-T)

0 – 40 °C

Compliance certificates

RoHS

Certification

ErP, WEEE, CE, CB, TUV

Width

150 mm

Depth

160 mm

Height

86 mm

Weight

1.7 kg

Package weight

2.45 kg
