be quiet! Pure Power L7 power supply unit 300 W 20+4 pin ATX ATX Black

be quiet! Pure Power L7, 300 W, 100 – 240 V, 400 W, 50 – 60 Hz, 5 – 2.5 A, +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V

Documentation:

SKU: BN103 Category: Brand:

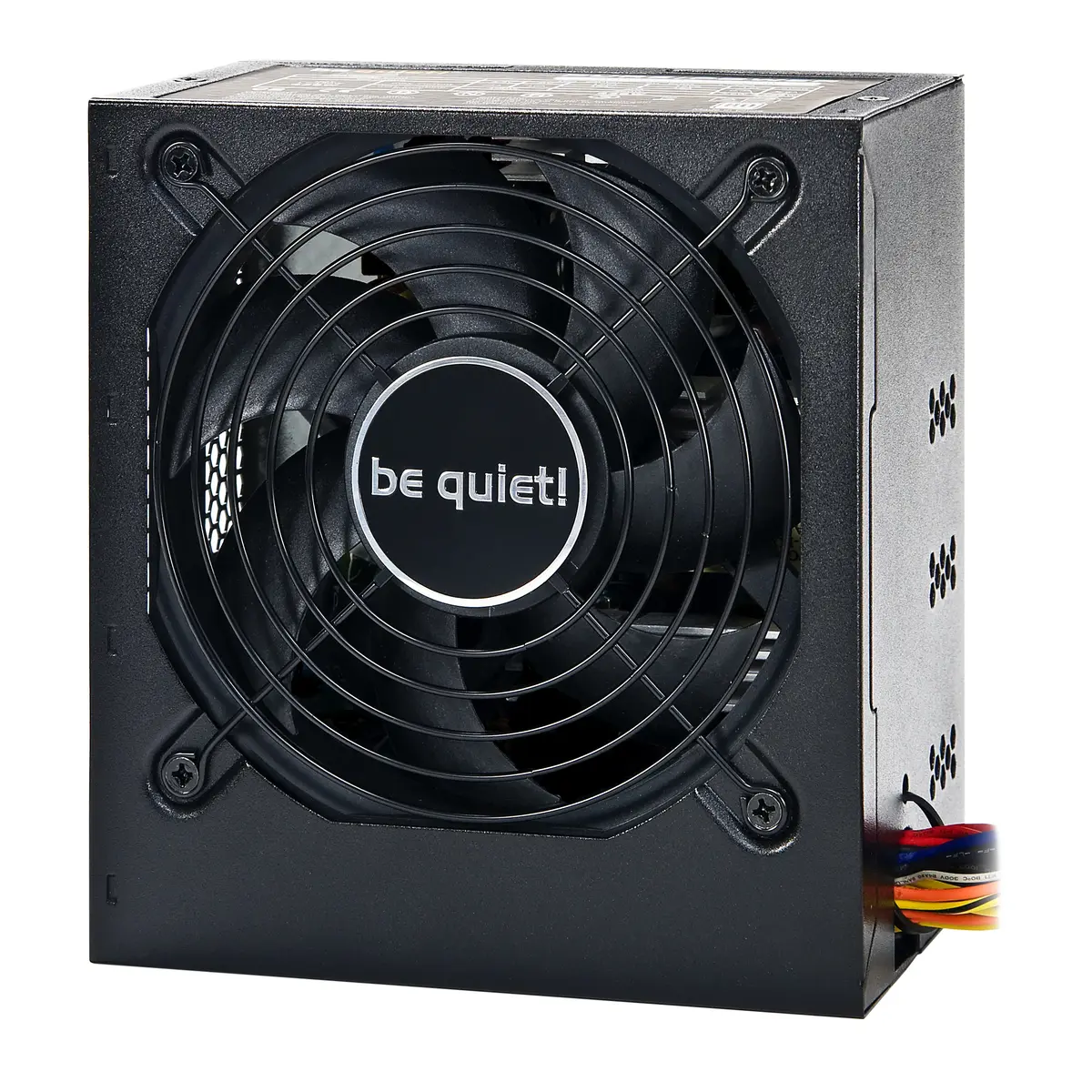

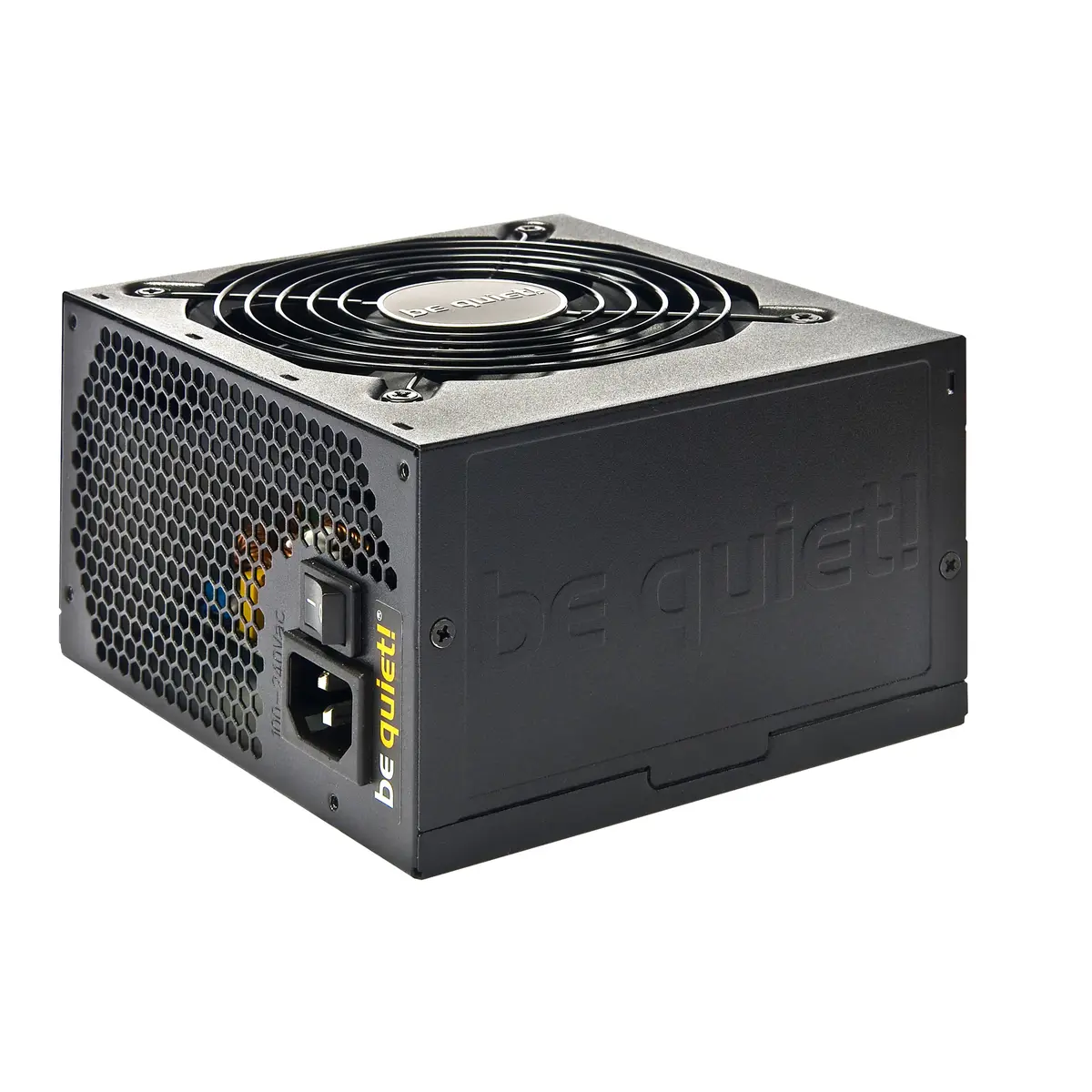

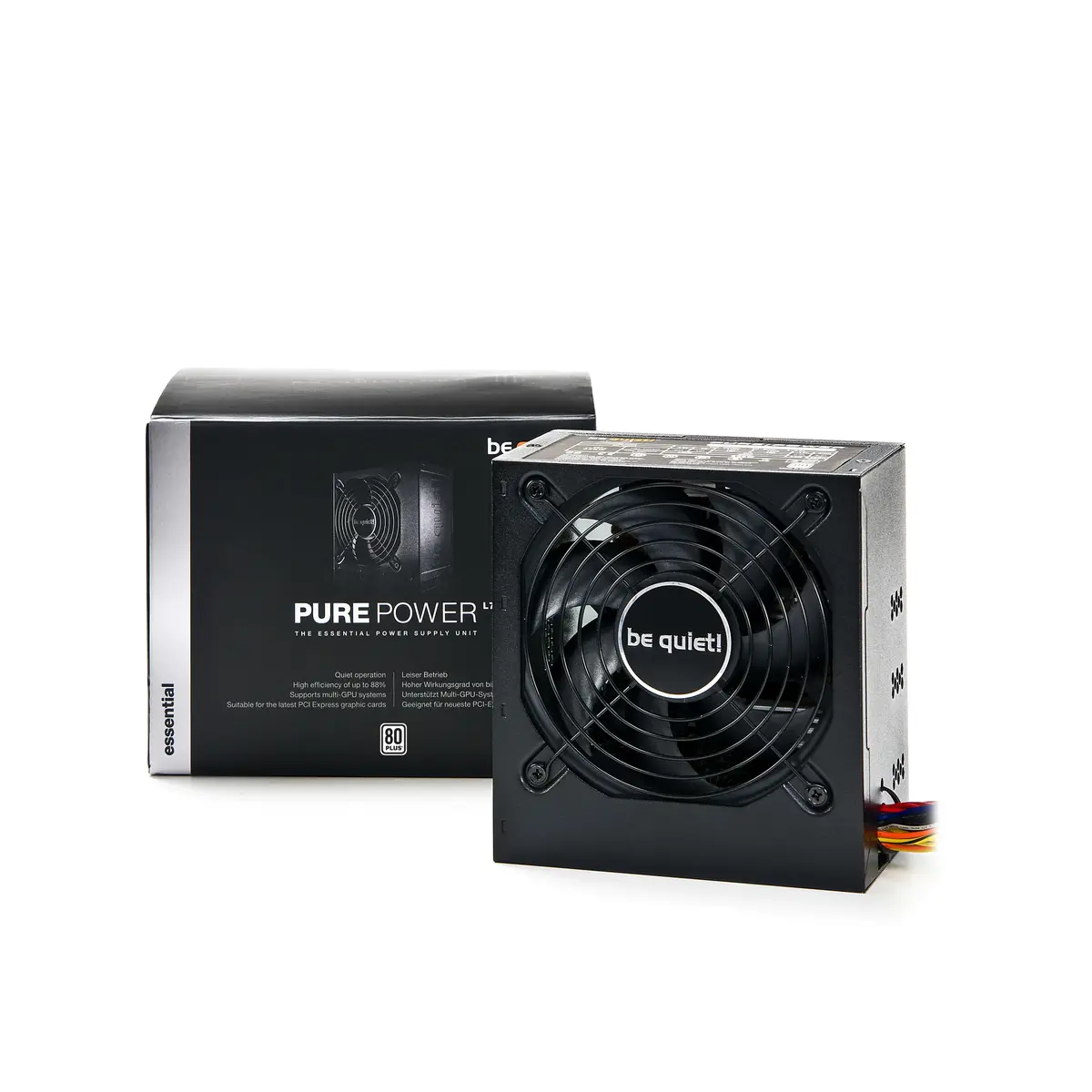

The be quiet! Pure Power L7 is an efficient and reliable power supply unit designed specifically for PCs. It boasts a total power output of 300 W, capable of handling peak loads up to 400 W.

With an AC input voltage range from 100 V to 240 V and operating at frequencies of 50 Hz to 60 Hz, it offers flexibility in various electrical environments. The PSU features a modular design without peripheral connectors, which simplifies cable management and reduces clutter within PC cases. Its ATX form factor ensures compatibility with most modern motherboards while adhering to the latest standards like 80 PLUS certification, indicating high efficiency during operation.

The product comes in black color, adding a sleek aesthetic appeal suitable for professional setups. In terms of cooling, the Active type utilizes fans that can reach speeds up to 1350 RPM, helping maintain optimal temperatures within the system. This model includes essential components such as motherboard power connector, SATA power connectors, CPU P4 connector, floppy drive power connector, and multiple fan headers ensuring comprehensive support for diverse hardware needs.

Main characteristics

  • Model: be quiet! Pure Power L7 power supply unit 300 W 20+4 pin ATX ATX Black
  • Colour: Black
  • Weight: 1.34 kg
  • Width: 140 mm
  • Depth: 150 mm
  • Height: 86 mm
  • Package weight: 1.8 kg
  • Noise level: 20 dB

Additional information

Total power

300 W

AC input voltage

100 – 240 V

Peak power

400 W

AC input frequency

50 – 60 Hz

Input current

5 – 2.5 A

Maximum input current (@110V)

+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V

Power factor

0.99

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

110 W

Combined power (-12V)

3.6 W

Combined power (+5V)

110 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

21 A

Max output current (-12V)

0.3 A

Max output current (+12V1)

18 A

Max output current (+12V2)

18 A

Max output current (+5V)

15 A

Max output current (+5Vsb)

2.5 A

Efficiency

87%

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Motherboard power connector

20+4 pin ATX

Peripheral (Molex) power connectors (4-pin)

2

Number of SATA power connectors

3

CPU P4 connector (4-pin)

1

Floppy drive power connector

1

Cabling type

Non-Modular

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS

ATX version

2.3

Noise level

20 dB

Mean time between failures (MTBF)

100000 h

Product colour

Black

Cooling type

Active

Fan diameter

12 cm

Number of fans

1 fan(s)

Fan speed

1350

Compliance certificates

RoHS

Certification

CE, CB, TÜV, Nemko (N), Semko (S), Fimko (FI), Demko (D)

Width

140 mm

Depth

150 mm

Height

86 mm

Weight

1.34 kg

Package weight

1.8 kg

Sustainability certificates

ENERGY STAR

Package dimensions (WxDxH)

185 x 145 x 163 mm
