be quiet! Dark Power Pro 10, 750 W, 100 – 240 V, 850 W, 50 – 60 Hz, 9 – 4.5 A, +12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V

Documentation:

SKU: BN202 Category: Brand:

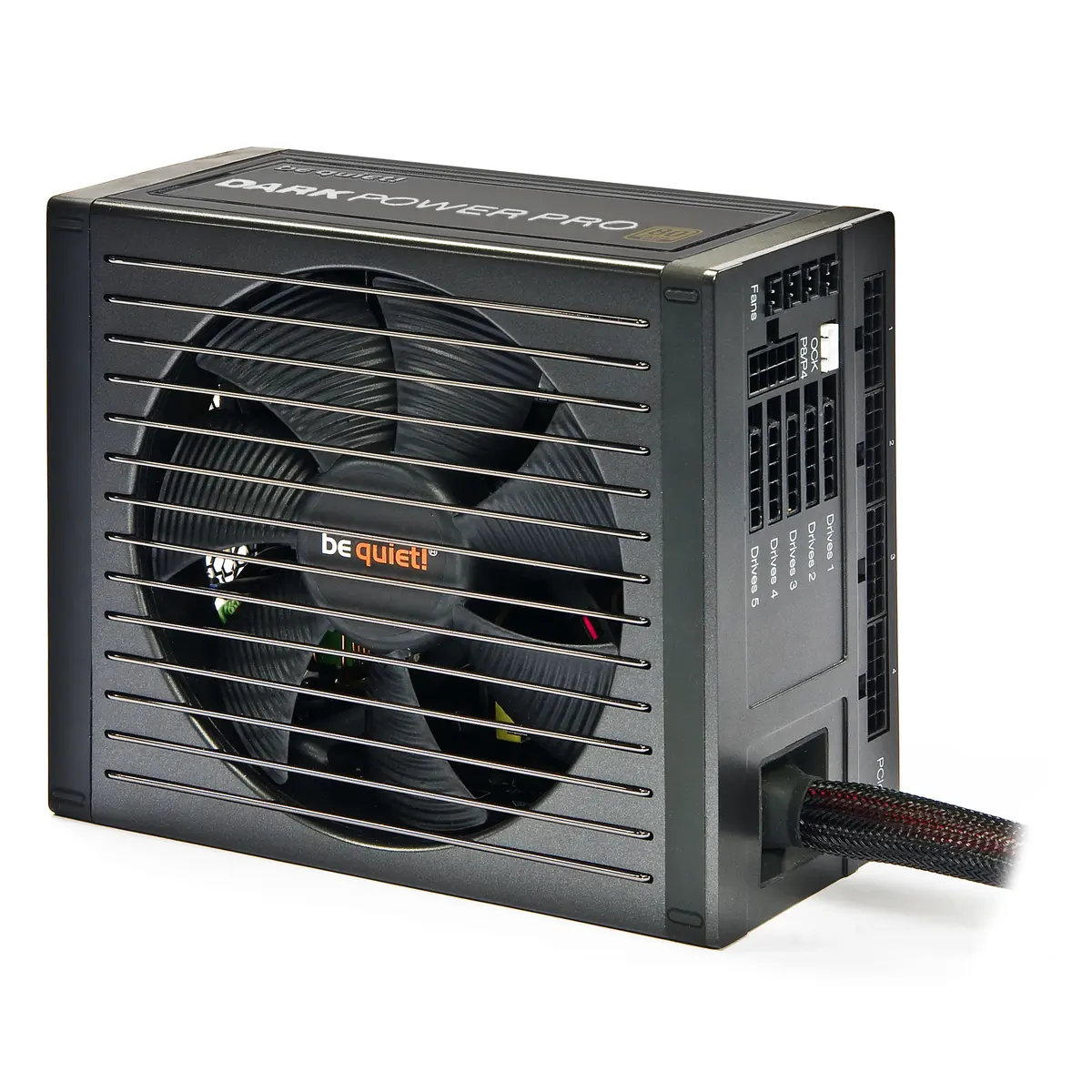

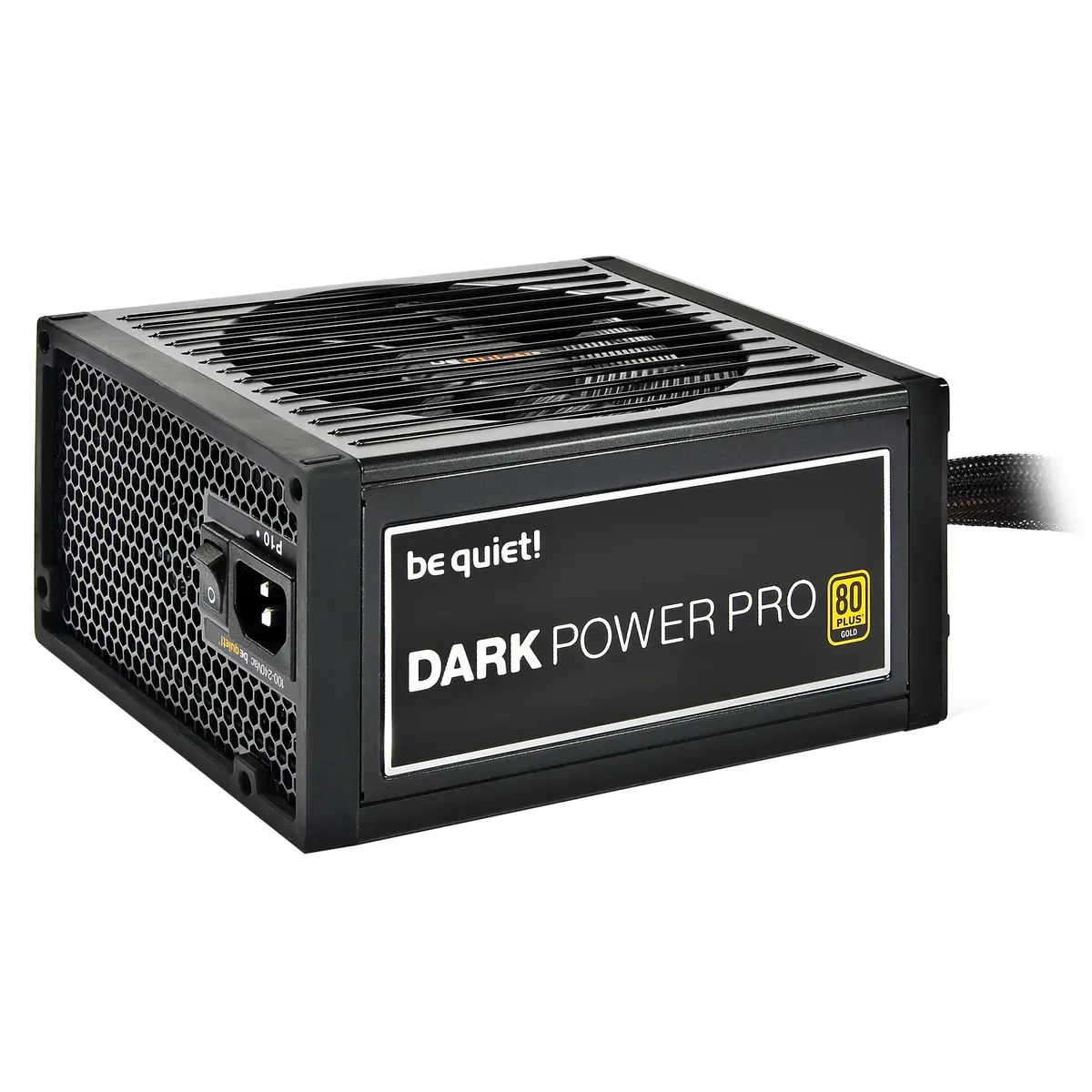

The be quiet! Dark Power Pro 10 is an efficient and reliable power supply designed specifically for PCs. With its total power capacity of 750 W and peak output capability of 850 W, it meets the needs of most high-performance computing tasks while maintaining energy efficiency at 93%.

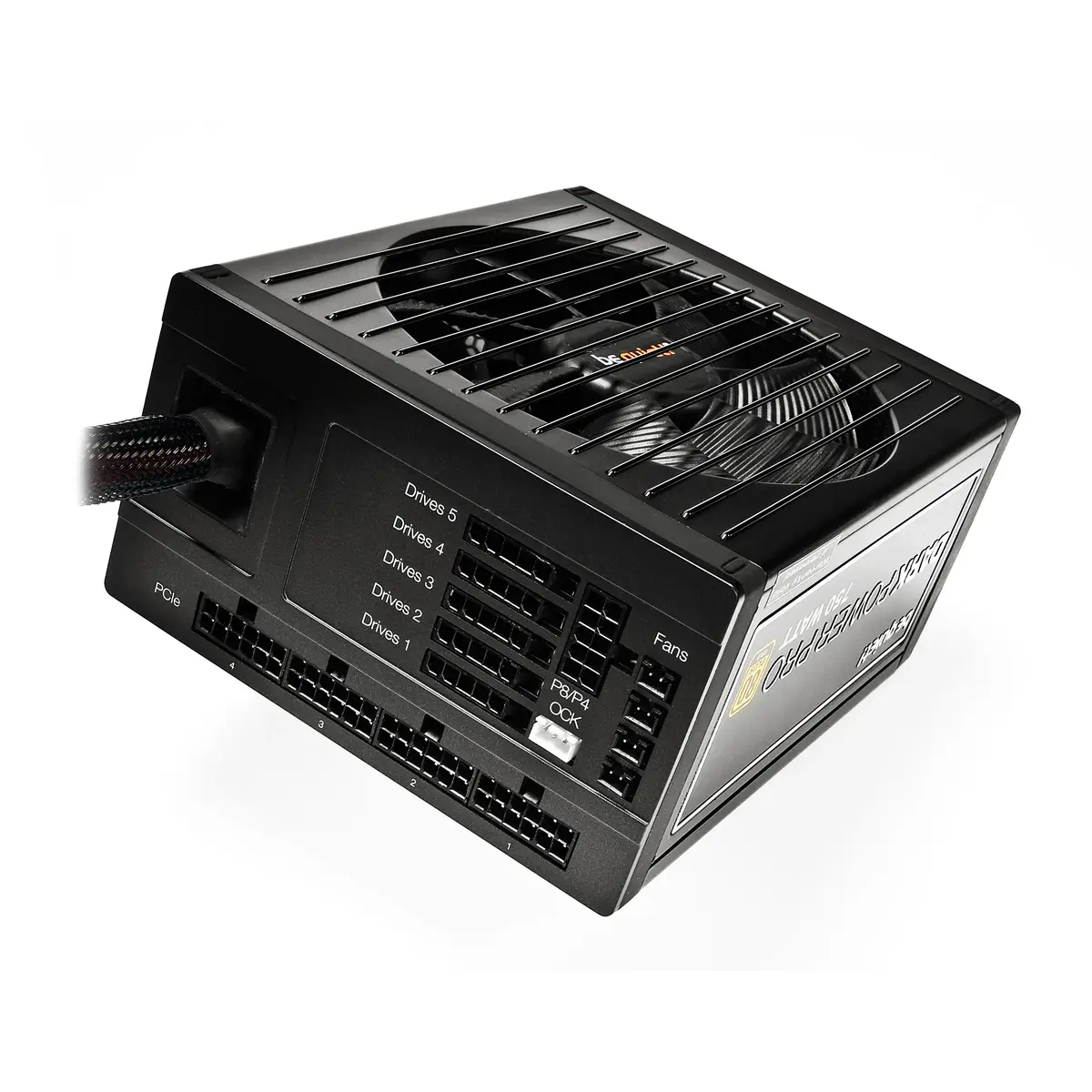

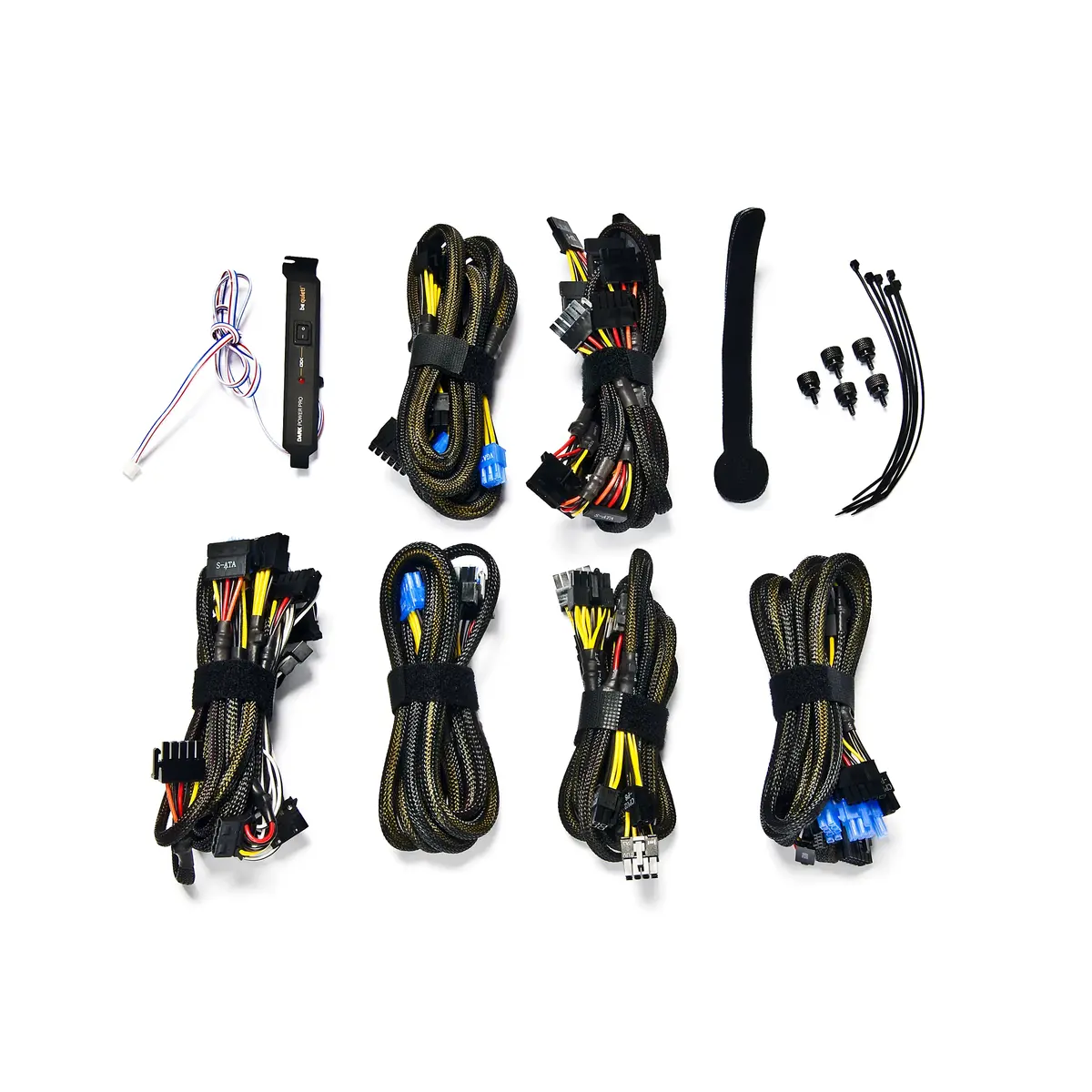

It supports various connectors including a 20+4 pin ATX motherboard connector, multiple SATA power connectors, and PCI Express power connectors to ensure compatibility with different types of hardware. The unit features semi-modular cables which allow easy cable management without compromising on connectivity options.

Its cooling system includes one active fan with a diameter of 13.5 cm that operates at 1800 RPM, providing adequate airflow during operation within specified temperatures ranging from 0°C to 40°C. This product adheres to strict environmental standards such as RoHS compliance and has received certifications like CE, CB, TÜV, Nemko (N), Semko (S), Fimko (FI), Demko (D), FCC, and cTUVus ensuring international market readiness.

Main characteristics

  • Model: be quiet! Dark Power Pro 10 power supply unit 750 W 20+4 pin ATX ATX Black
  • Colour: Black
  • Width: 150 mm
  • Noise level: 22.6 dB
  • sku: BN202
  • Total power: 750 W
  • AC input voltage: 100 – 240 V
  • Peak power: 850 W

Additional information

Total power

750 W

AC input voltage

100 – 240 V

Peak power

850 W

AC input frequency

50 – 60 Hz

Input current

9 – 4.5 A

Maximum input current (@110V)

+12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V

Power factor

0.99

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

140 W

Combined power (+12V)

744 W

Combined power (+5V)

140 W

Max output current (+3.3V)

25 A

Max output current (-12V)

0.5 A

Max output current (+12V1)

25 A

Max output current (+12V2)

25 A

Max output current (+12V3)

30 A

Max output current (+12V4)

30 A

Max output current (+5V)

25 A

Max output current (+5Vsb)

3 A

Hold time

27 ms

Efficiency

93%

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Motherboard power connector

20+4 pin ATX

Peripheral (Molex) power connectors (4-pin)

9

Number of SATA power connectors

9

PCI Express power connectors (6-pin)

1

PCI Express power connectors (6+2 pin)

6

CPU P4 connector (4-pin)

1

CPU power connector (4+4 pin)

Yes

Floppy drive power connector

2

CPU power connectors (8-pin)

1

Cabling type

Semi-Modular

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Gold

ATX version

2.31

EPS version

2.92

Noise level

22.6 dB

Bearing technology

FDB

Mean time between failures (MTBF)

300000 h

Product colour

Black

Cooling type

Active

Fan diameter

13.5 cm

Number of fans

1 fan(s)

Fan speed

1800

Operating temperature (T-T)

0 – 40 °C

Compliance certificates

RoHS

Certification

CE, CB, TÜV, Nemko (N), Semko (S), Fimko (FI), Demko (D), FCC, cTUVus

Width

150 mm
