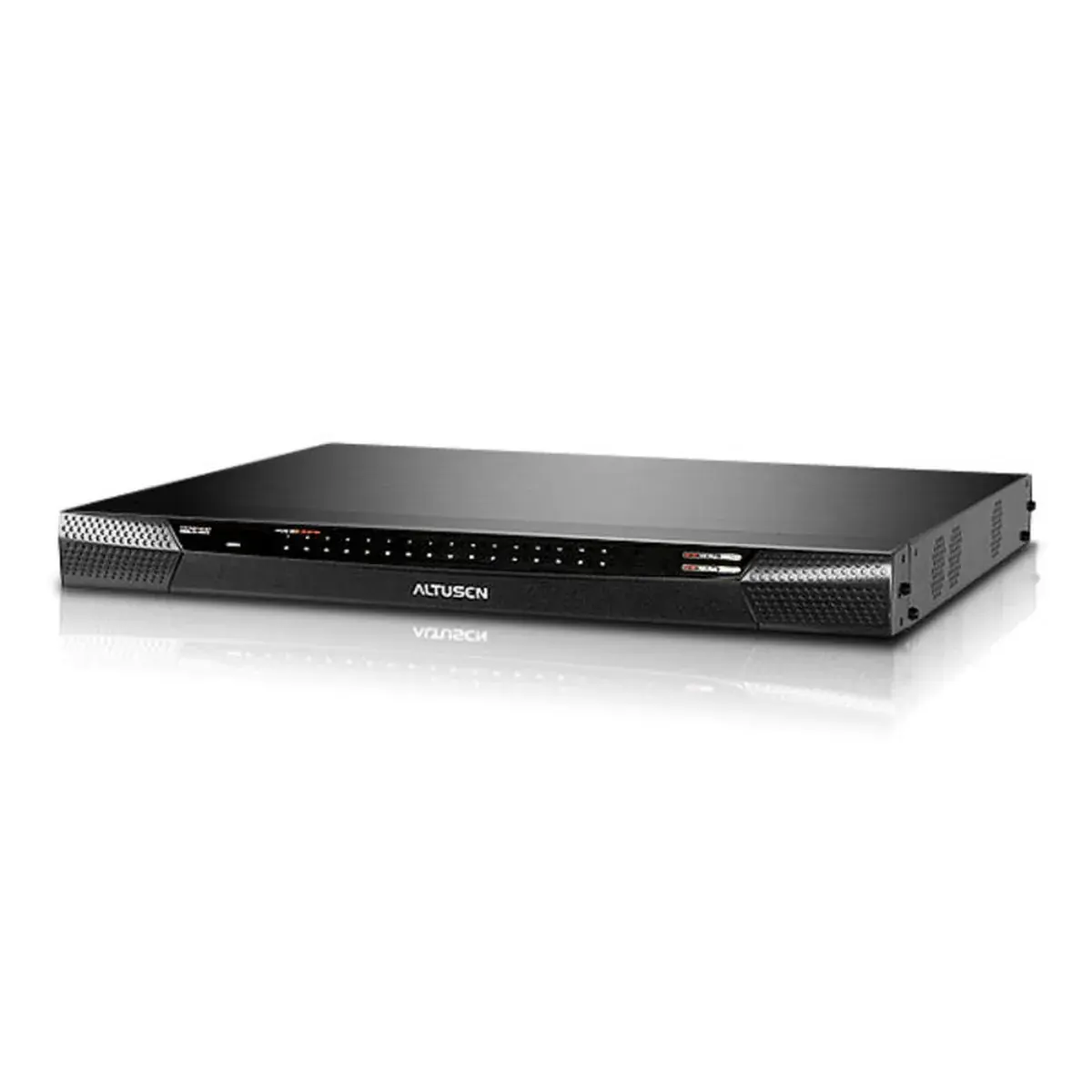

ATEN KN4132 KVM switch Rack mounting Black

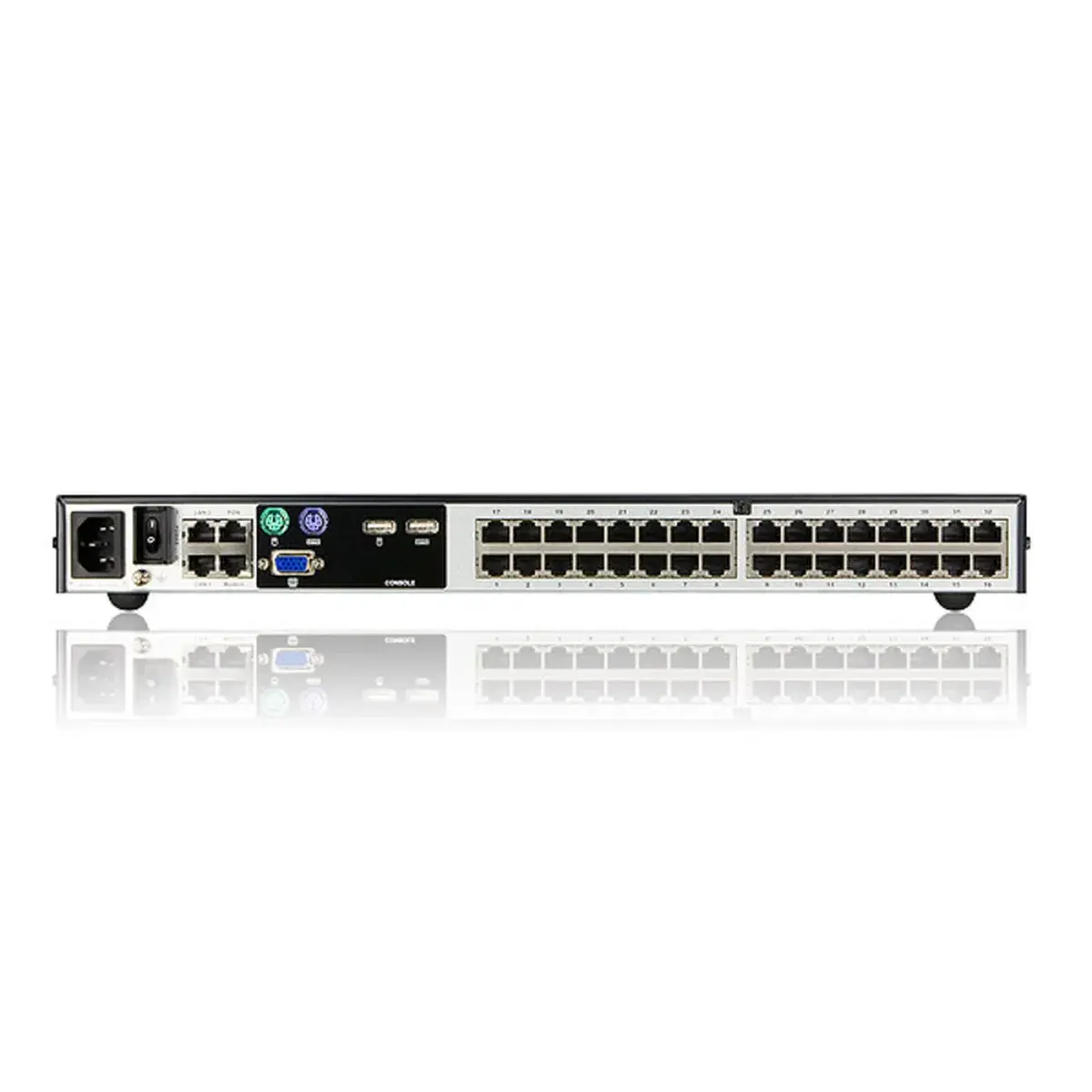

The ATEN KN4132 KVM switch is designed for managing up to three computers simultaneously through USB and PS/2 keyboard ports, as well as USB and PS/2 mouse ports. It supports VGA video connections via one D-Sub port. This device features an Ethernet LAN interface with 36 RJ-45 ports for additional connectivity options.

The ATEN KN4132 can be mounted in a standard 1U rack due to its compact size of 433.6mm width x 413.5mm depth x 44mm height. Its housing material is made from metal, providing durability and stability. With a power consumption of 45.8W typical, it operates within a wide voltage range of 100V to 240V at frequencies between 50Hz and 60Hz.

Security protocols are robustly implemented using AES, DES, 3DES, and 802.1x RADIUS algorithms. The maximum supported resolution is 1600×1200 pixels, allowing high-quality display management across connected devices. A scan interval setting of 255 seconds ensures efficient resource utilization without compromising on performance.

Main specifications

• Model: ATEN KN4132 KVM switch Rack mounting Black
• Colour: Black
• Weight: 5.63 kg
• Width: 433.6 mm
• Depth: 413.5 mm
• Height: 44 mm
• Typical power consumption: 45.8 W
• Input voltage: 100-240 V
