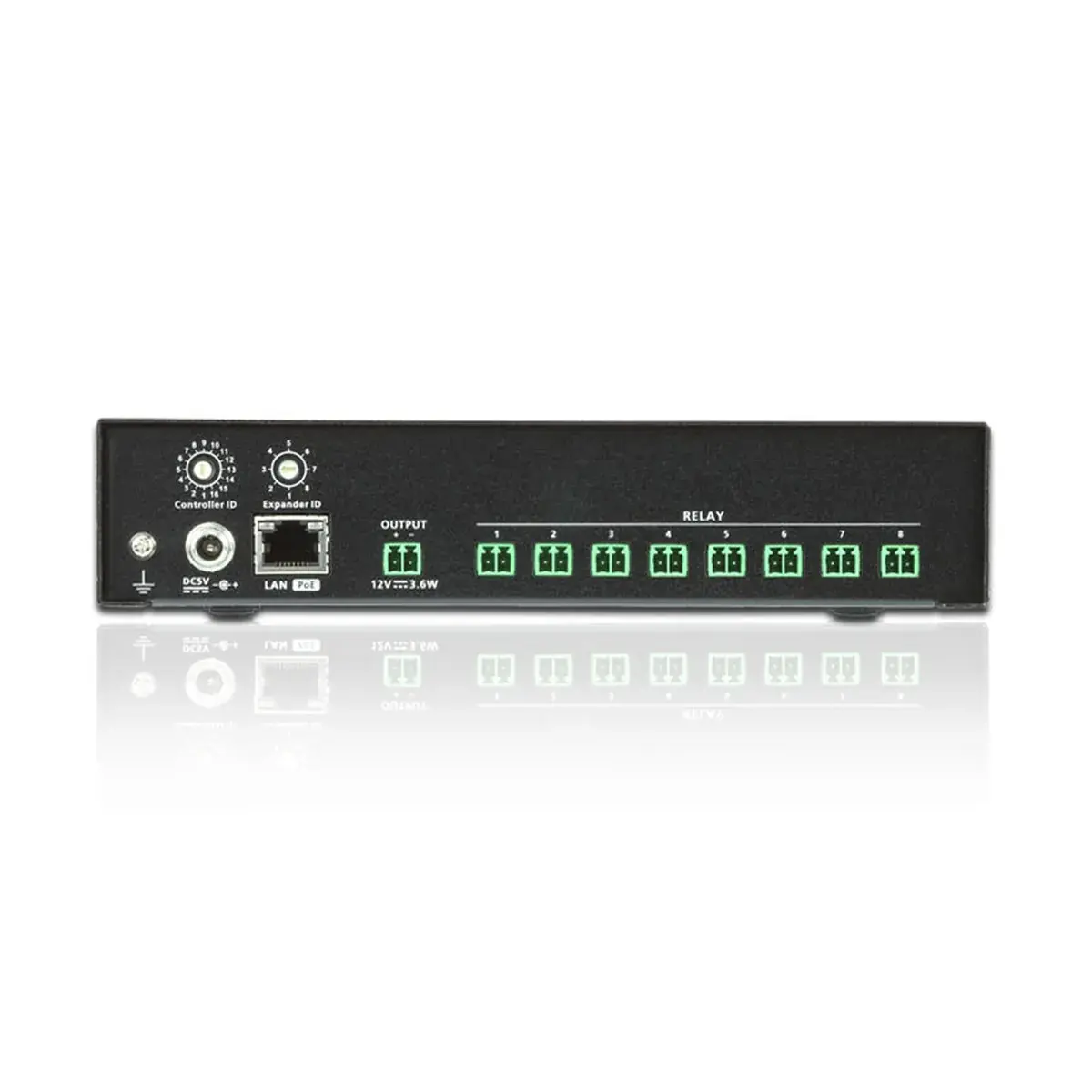

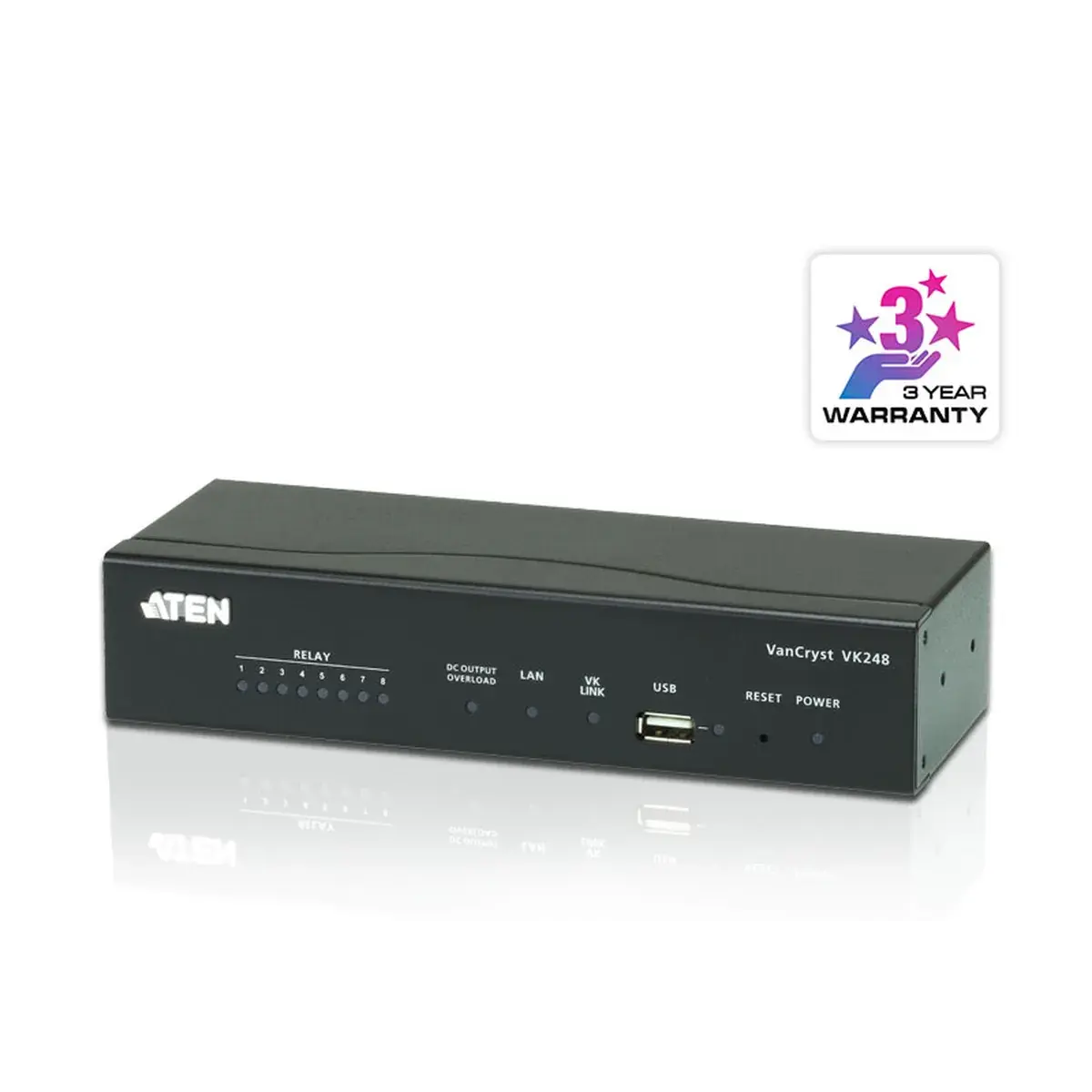

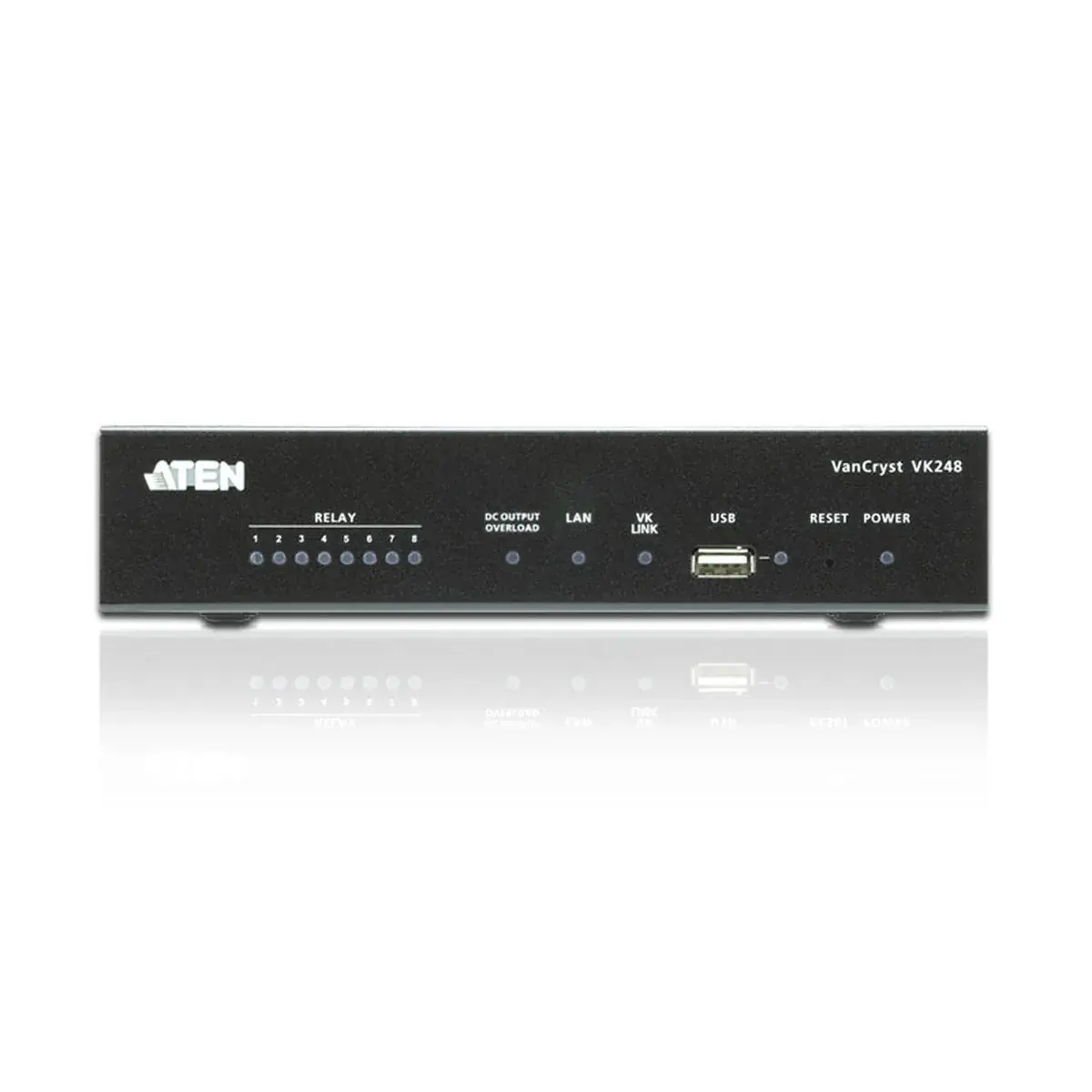

The ATEN 8-Channel Relay Expansion Box is designed to expand your existing relay system by adding eight additional channels. It supports various network protocols including ARP, ICMP, TCP/IP, DHCP, HTTPS, and SSH for enhanced connectivity options. This device operates within an operating range of 0°C to 50°C and can be stored at temperatures between -20°C and 60°C.
Its dimensions are compact at 75.8mm in width, 200mm in depth, and 42mm in height. Equipped with one Ethernet LAN port via RJ-45 connector, it offers reliable data transmission capabilities. The power consumption of this expansion box is moderate, consuming just 300 mA when powered by either DC5V (equivalent to 2.82W or approximately 24BTU) or DC48V (equivalent to 3.53W or around 27BTU).
Each unit weighs about 740g but comes packaged in a master outer case that measures 250mm wide, 325mm long, and 175mm high. The packaging itself has a total gross weight of 4.85kg while being quite lightweight at 3.7kg without the contents inside. With five units packed per master outer case, these devices provide efficient storage solutions for managing multiple applications simultaneously.
Product highlights
- Model: ATEN 8-Channel Relay Expansion Box
- Colour: Black
- Weight: 740 g
- Width: 75.8 mm
- Depth: 200 mm
- Height: 42 mm
- Package weight: 900 g
- Power consumption: 300 mA
