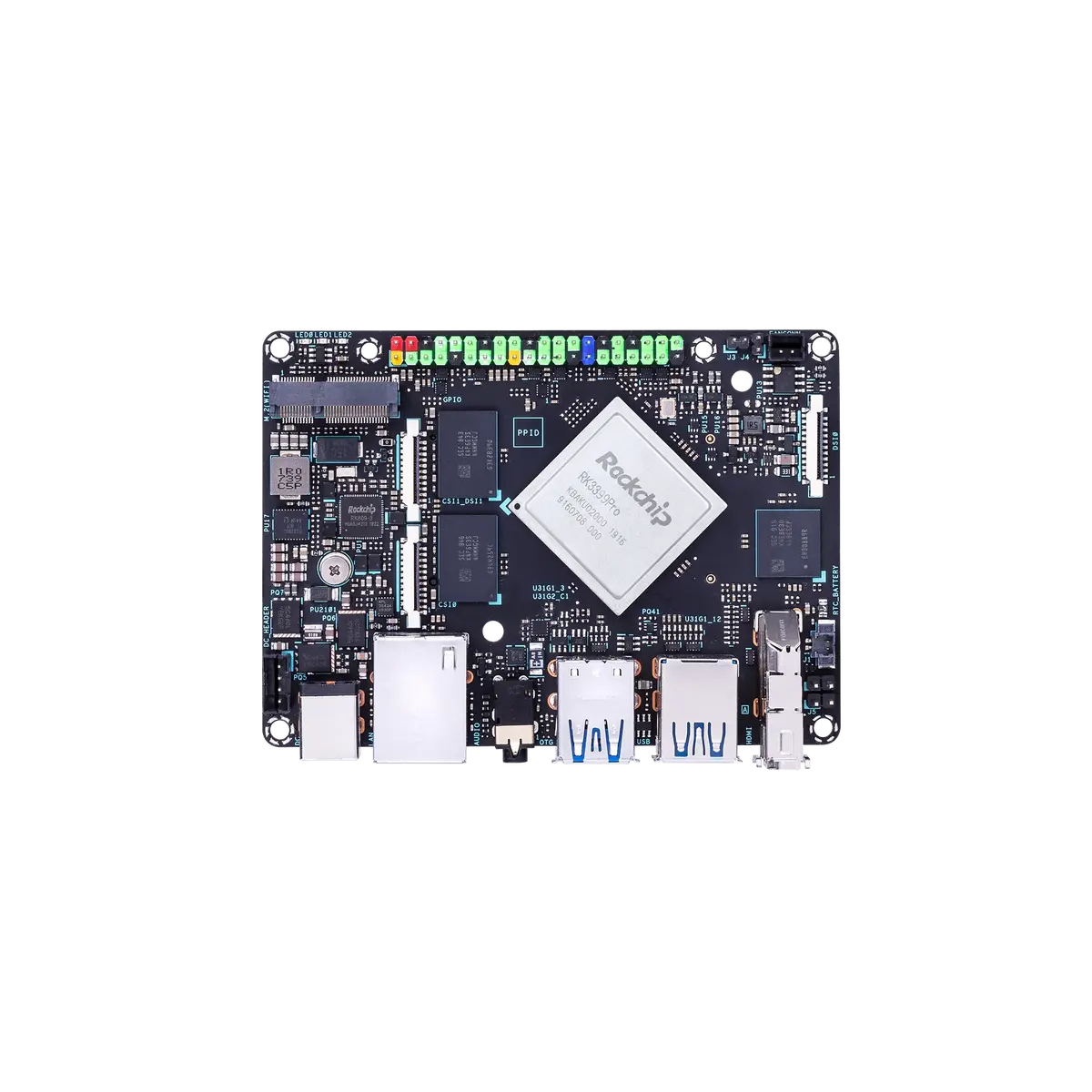

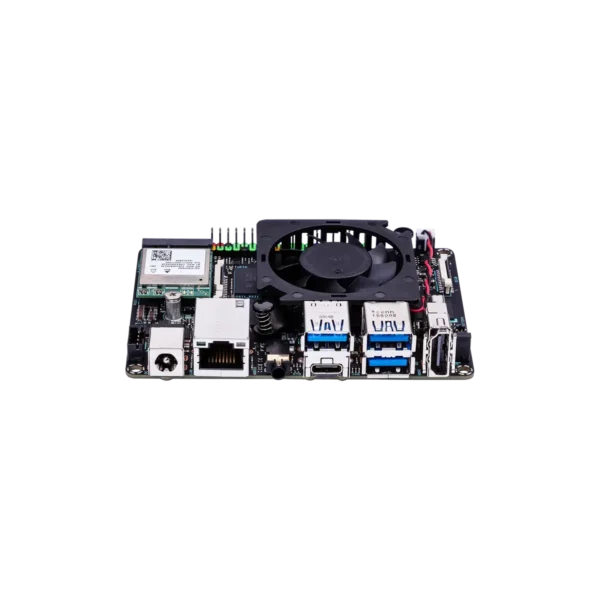

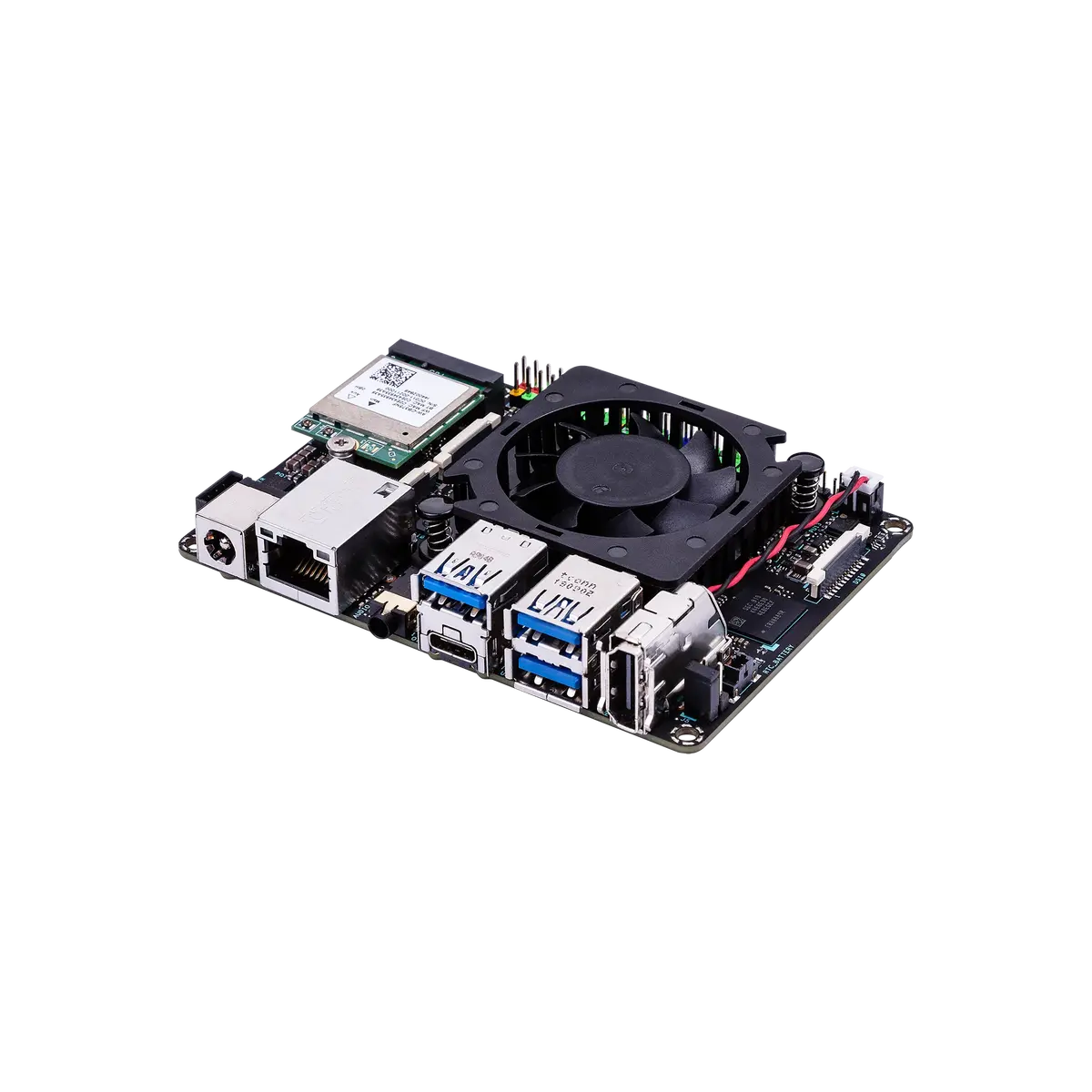

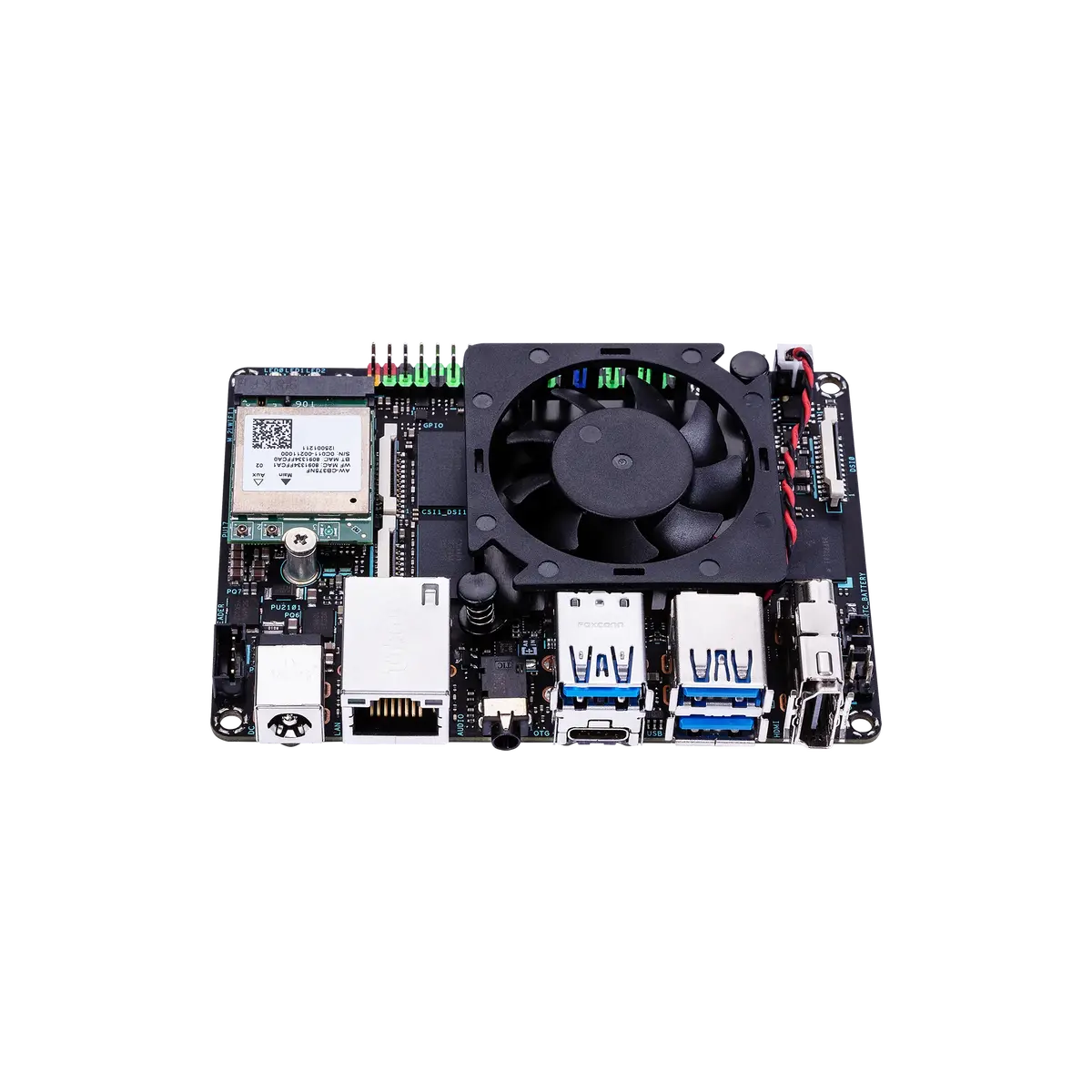

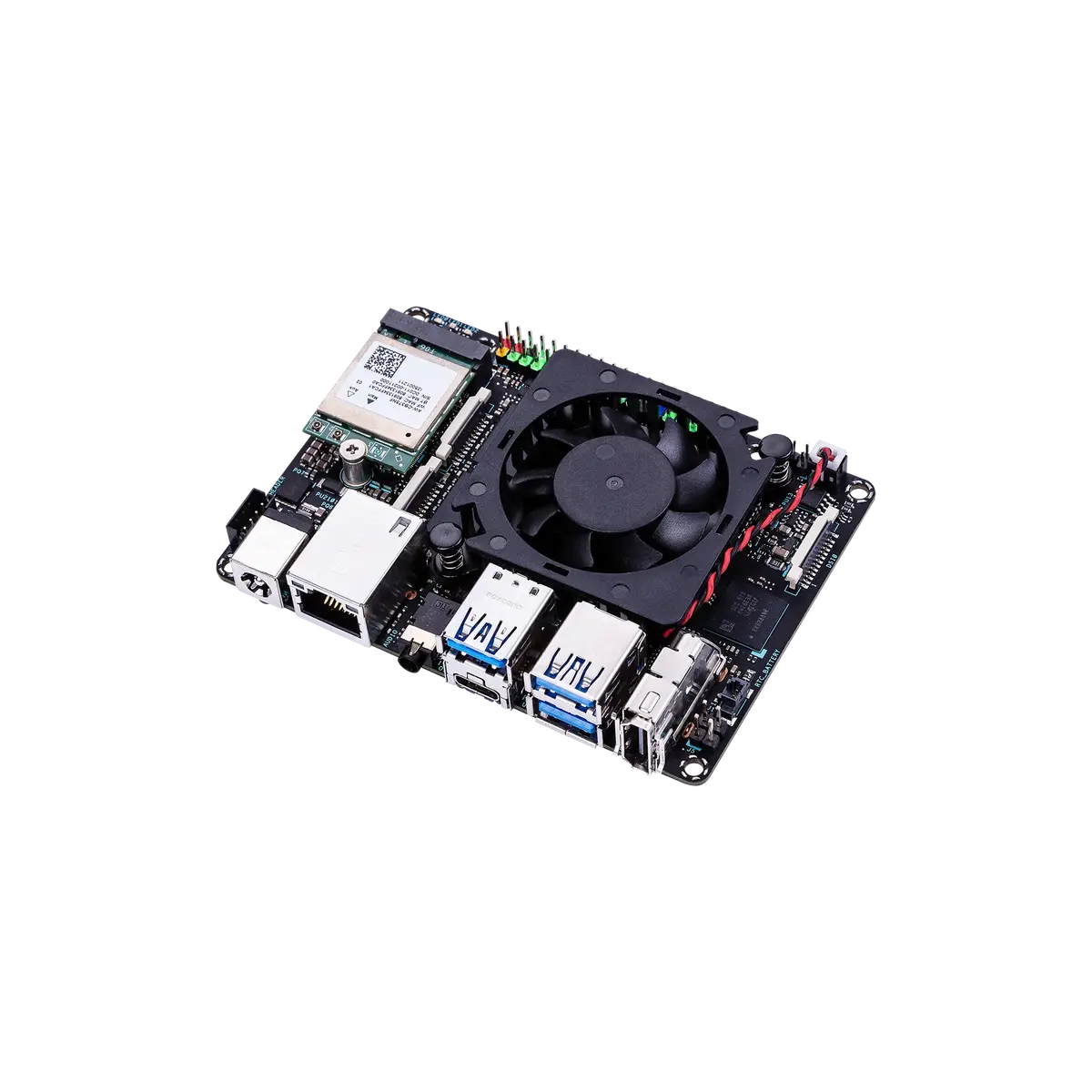

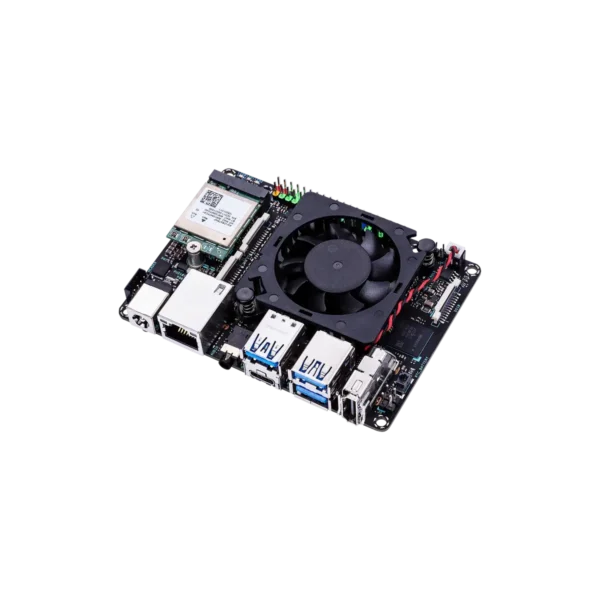

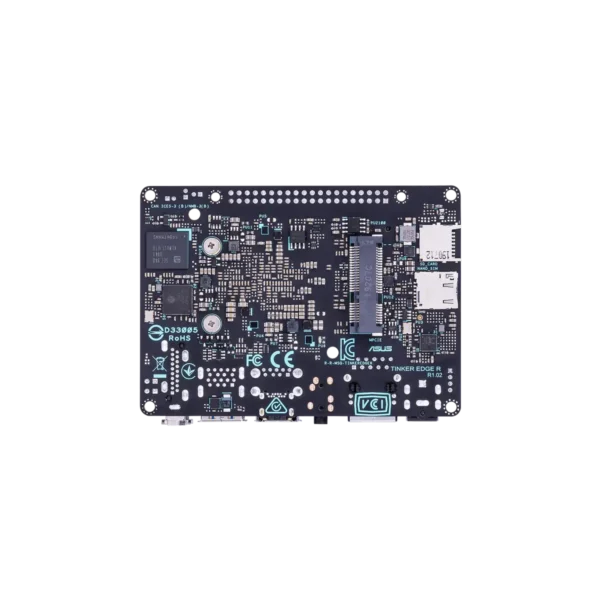

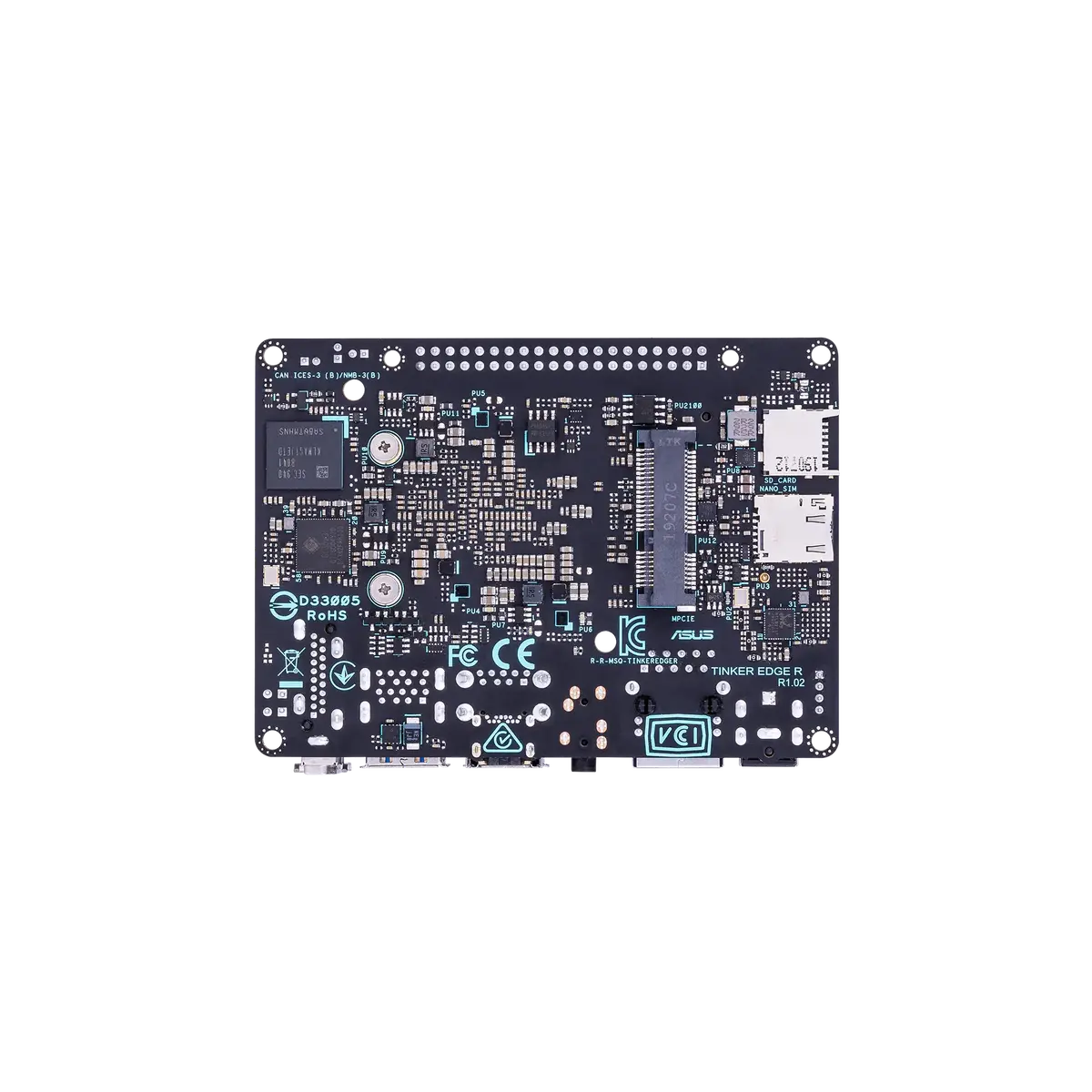

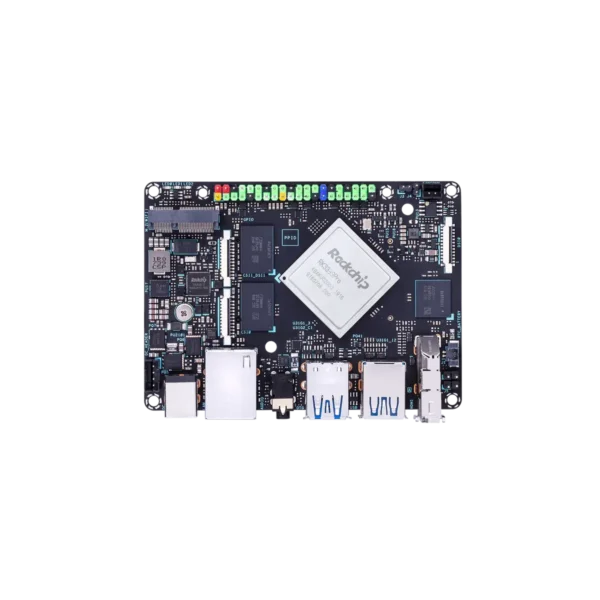

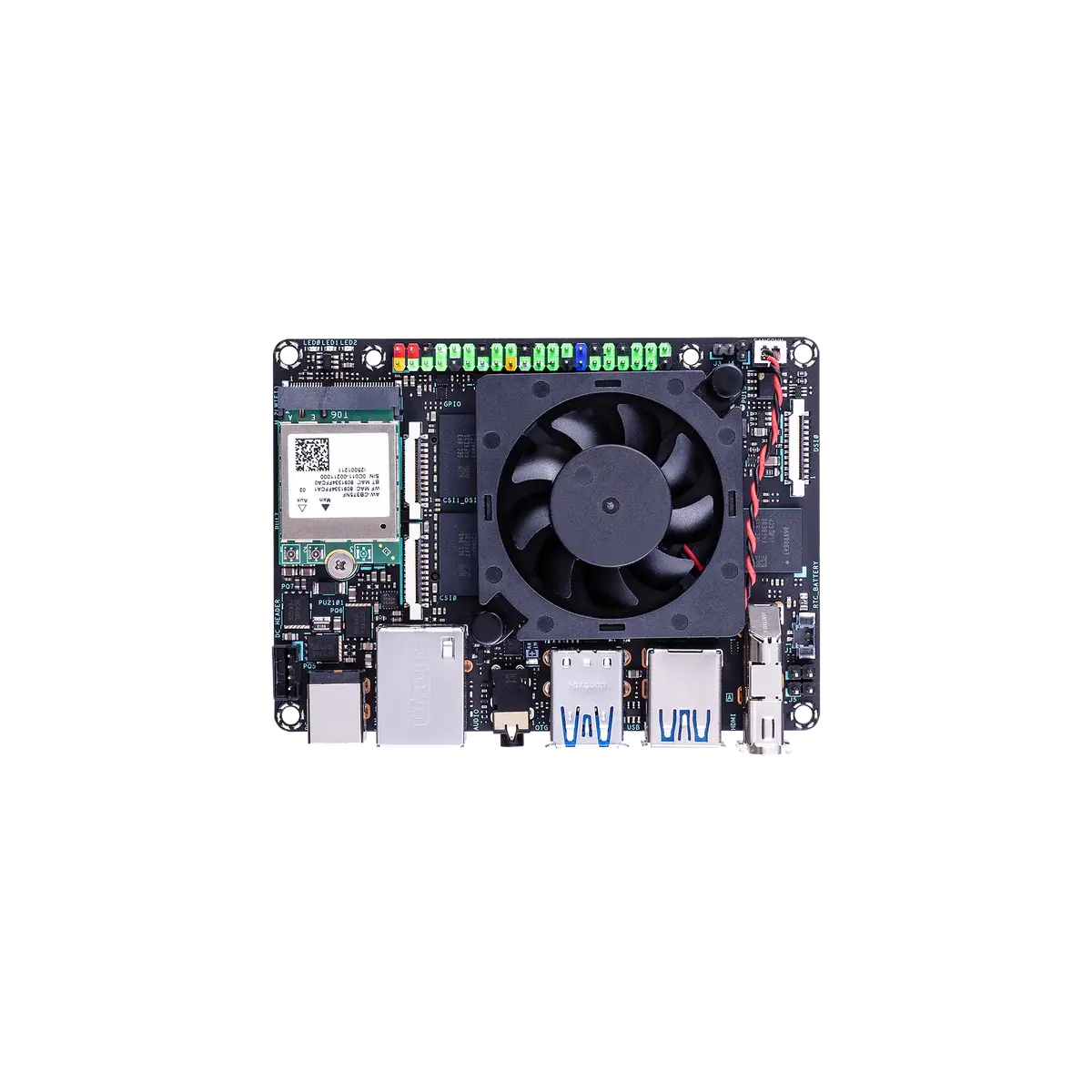

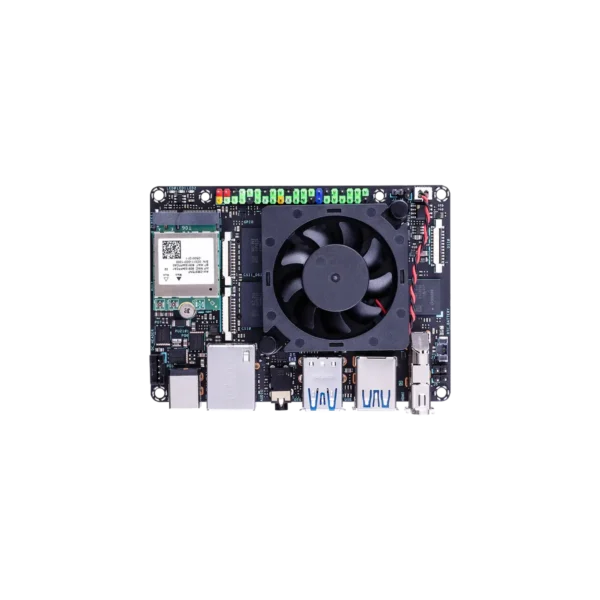

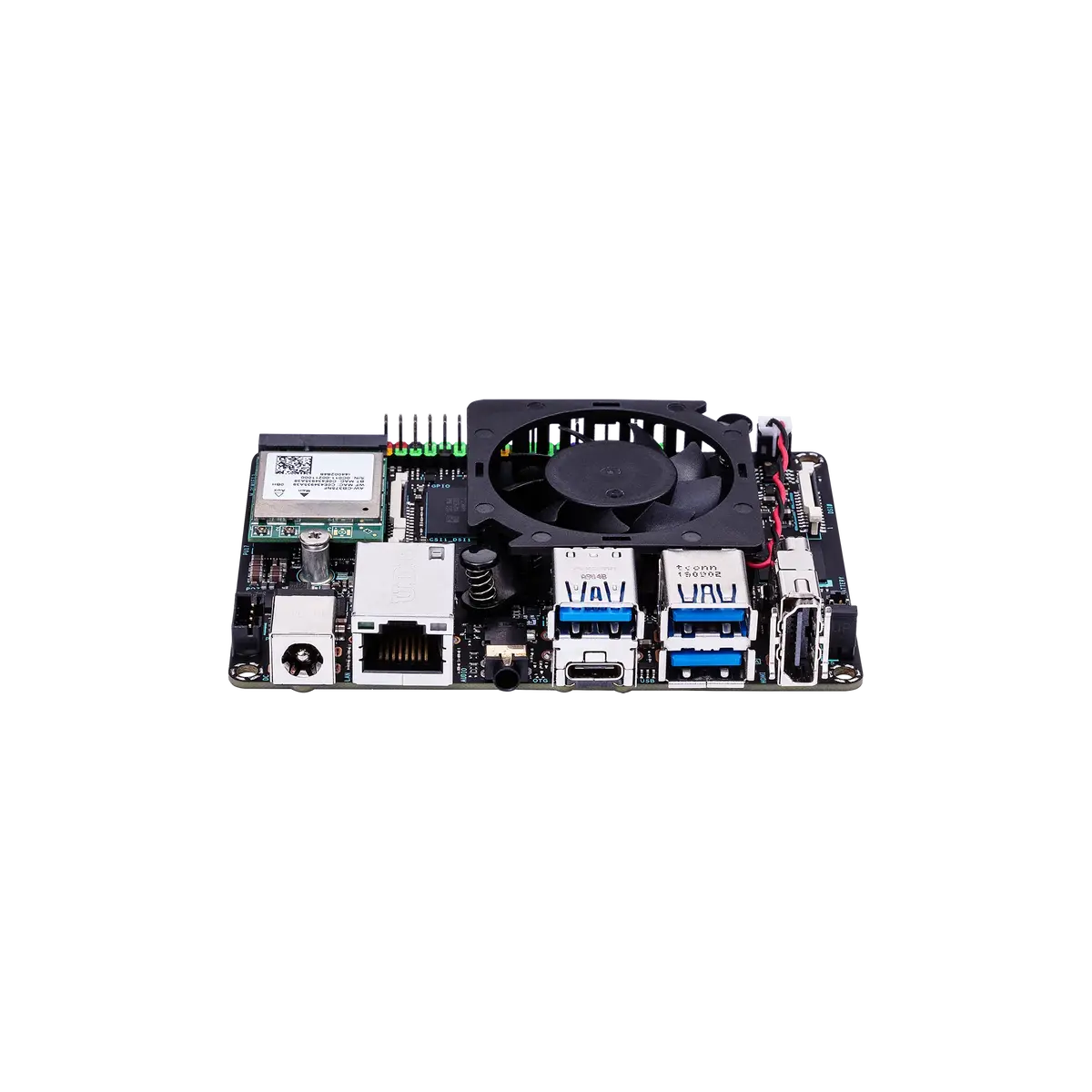

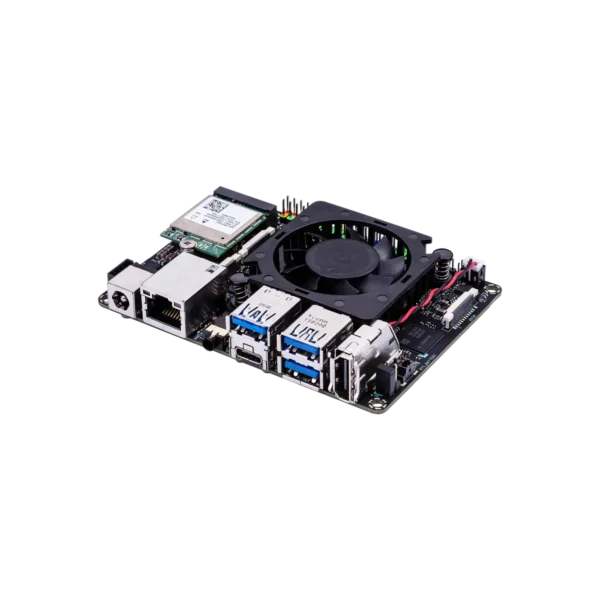

ASUS Tinker Edge R development board 1.8 MHz Rockchip RK3399Pro

The ASUS Tinker Edge R development board is equipped with an 1.8 MHz Rockchip RK3399Pro processor manufactured by Rockchip. It supports up to 6 GB of LPDDR4-SDRAM memory in dual-channel configuration for enhanced performance. This board features eMMC storage with a capacity of 16 GB and compatibility with MicroSD cards.

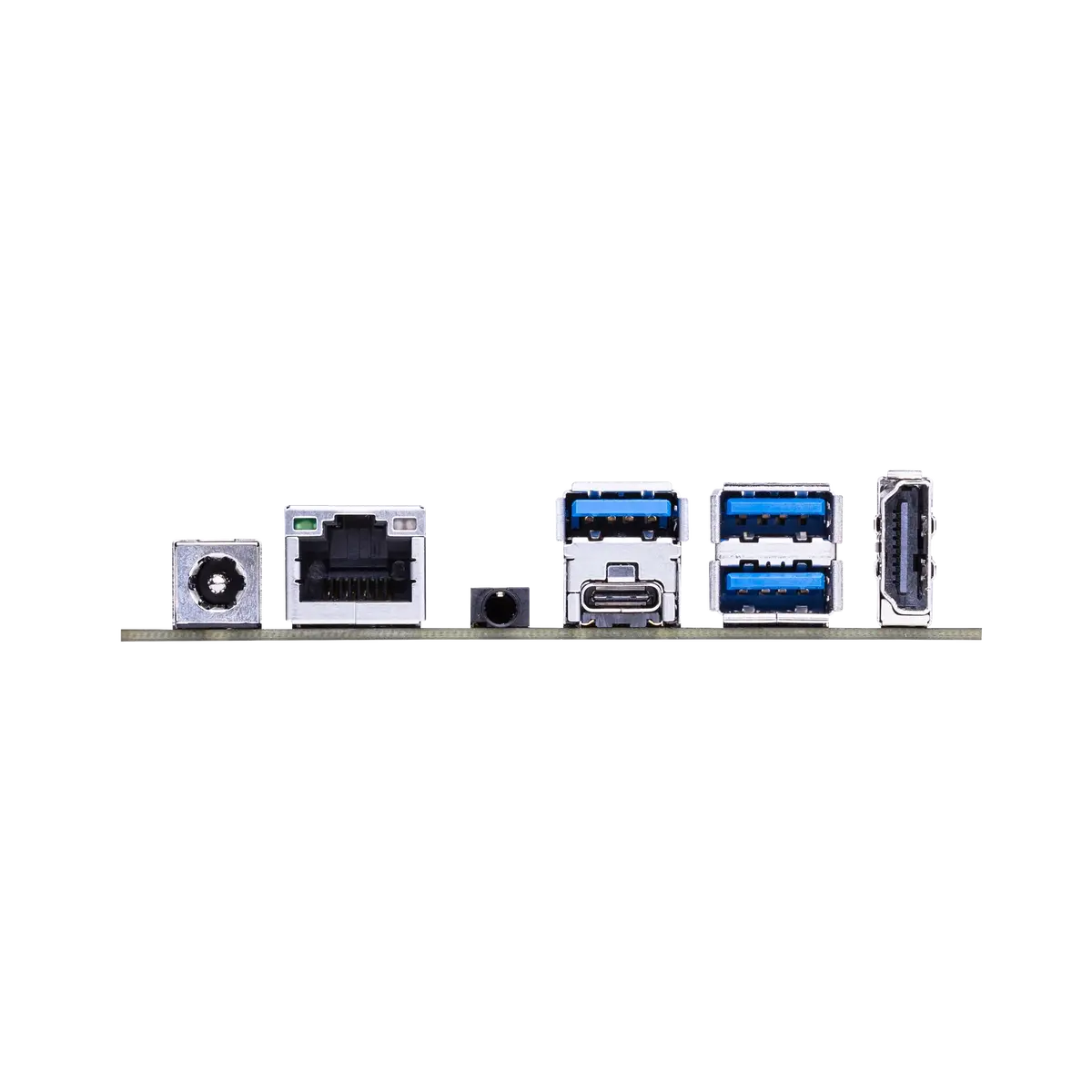

For connectivity, it includes Wi-Fi standards ranging from 802.11a through 5G, Gigabit Ethernet support via RJ-45 connector, USB version 3.2 Gen 1 ports totaling four, Bluetooth v5.0 capability, headphone out, S/PDIF out port, real-time clock functionality, on-board graphics powered by the ARM Mali-T860 MP4 GPU, and PWM digital I/O pins among other inputs like UART, GPIO, I2C, MIPI DSI interfaces, SPI, I2S, PCM, and MPI CSI/DSI connections.

The board operates within a specified operating range of 0°C to 60°C and has a storage temperature range of -40°C to 80°C. Its dimensions are 100 x 72 mm, packaged in a box format suitable for easy transportation and installation into various projects requiring flexible computing solutions. With its comprehensive set of hardware components and specifications, this development board offers versatility and robustness ideal for advanced DIY electronics enthusiasts and professional developers alike.

Technical details

• Model: ASUS Tinker Edge R development board 1.8 MHz Rockchip RK3399Pro
• Processor: Rockchip RK3399Pro
• CPU frequency: 1.8 MHz
• Bluetooth: Yes
• Wi-Fi: Yes
• USB ports: 4
• HDMI ports: 1
• sku: 90ME00M0-M0EAY0
