APC Power-Saving Back-UPS Pro

APC Power-Saving Back-UPS Pro

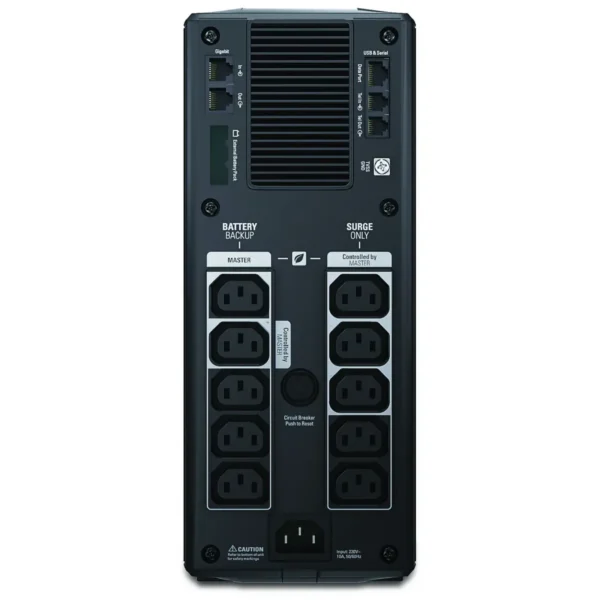

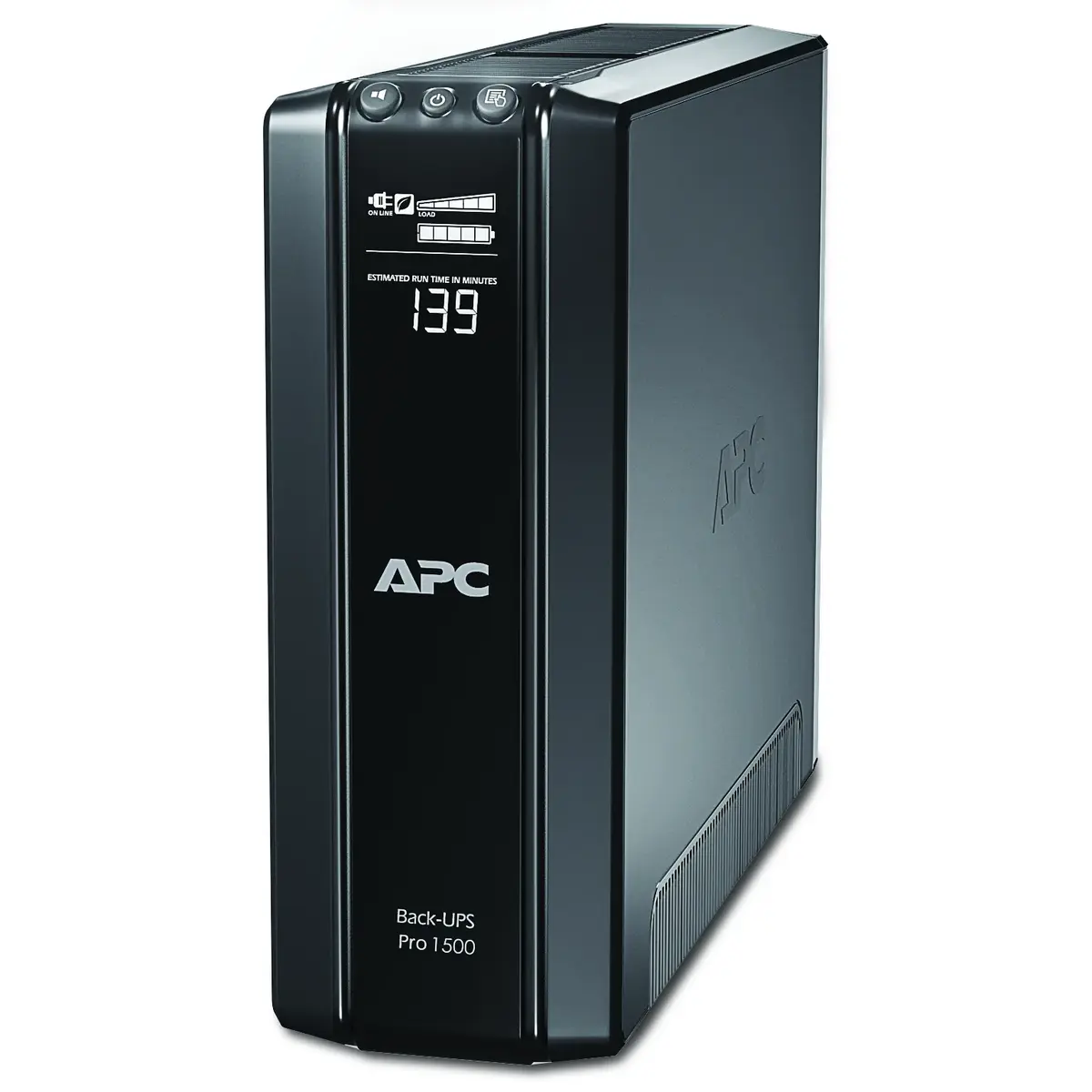

The APC Back-UPS Pro is an uninterruptible power supply designed for tower use, featuring a robust Line-Interactive topology capable of delivering up to 1.5 kVA/865W output capacity. It supports 10 IEC C13 outlets and includes user-replaceable batteries that can be easily swapped out when needed. The UPS operates within a voltage range from 156V to 300V at frequencies between 50Hz and 60Hz, ensuring reliable performance across various environments.

With its digital AVR system, it automatically regulates input voltages to maintain optimal operation during fluctuations in electrical conditions. Additionally, the device offers surge protection against common threats such as DSL, fax, modem, network, and telephone surges, enhancing overall safety and reliability.

Equipped with a black LCD display, this unit provides clear visibility of critical information like battery status and operational parameters. Its compliance certifications ensure adherence to international standards including RoHS, A-tick, CE, GOST, GS Mark, Telepermit, TUV, REACH, PEP, EOLI, NEMKO-GS among others.

Main characteristics

  • Model: APC Back-UPS Pro, 1500VA/865W, Tower, 230V, 10x IEC C13 outlets, AVR, LCD, User Replaceable Battery
  • Colour: Black
  • Width: 112 mm
  • Depth: 380 mm
  • Height: 301 mm
  • Frequency: 50/60 Hz
  • Noise level: 45 dB

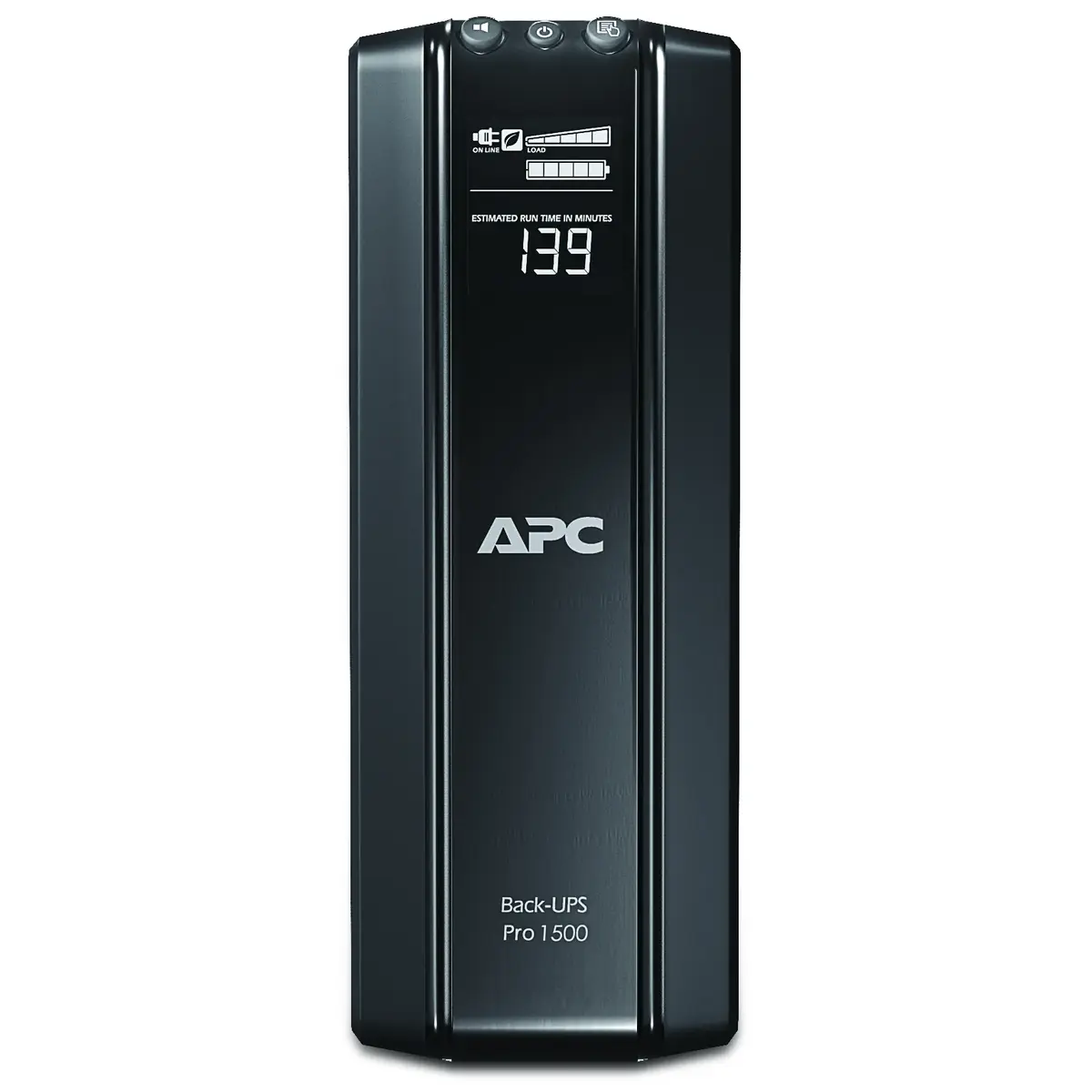

  • Display: LCD

Additional information

UPS topology

Line-Interactive

Output power capacity

1.5 kVA

Output power

865 W

Waveform

Sine

Input operation voltage (min)

156 V

Input operation voltage (max)

300 V

Input frequency

50/60 Hz

Output frequency regulation

50/60 Hz

Automatic Voltage Regulation (AVR)

Yes

Surge energy rating

441 J

Hold time (min)

10 ms

Hold time (max)

12 ms

Efficiency

98.9%

Crest factor

3:1

Noise level

45 dB

Surge protection

Yes

Surge protection features

Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone

Audible alarm(s)

Yes

Audible alarm modes

Low battery alarm, Overload alarm

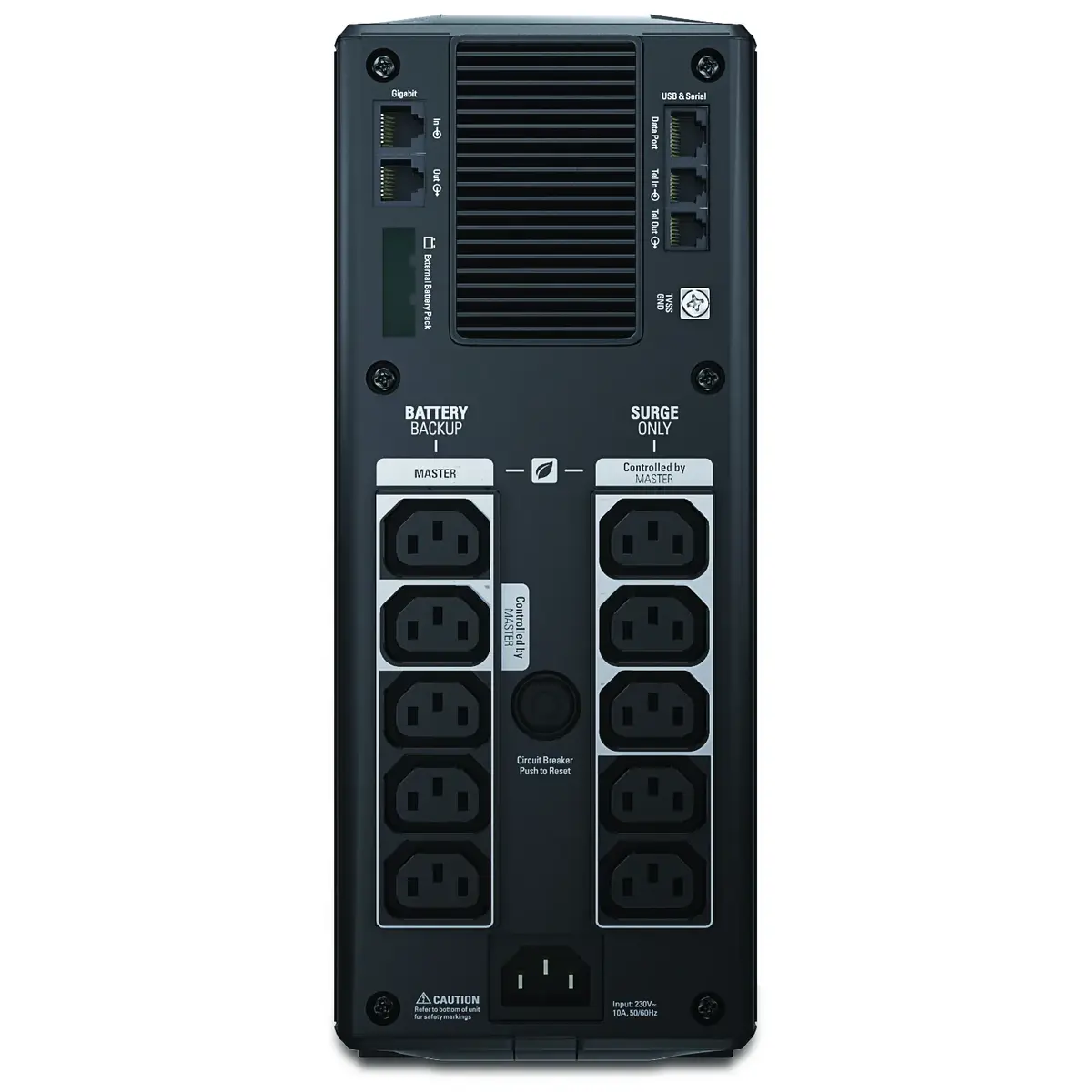

AC outlet types

C13 coupler

Power plug

C14 coupler

AC outlets quantity

10 AC outlet(s)

Number of output IEC jumpers

2

USB port

Yes

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

187 VAh

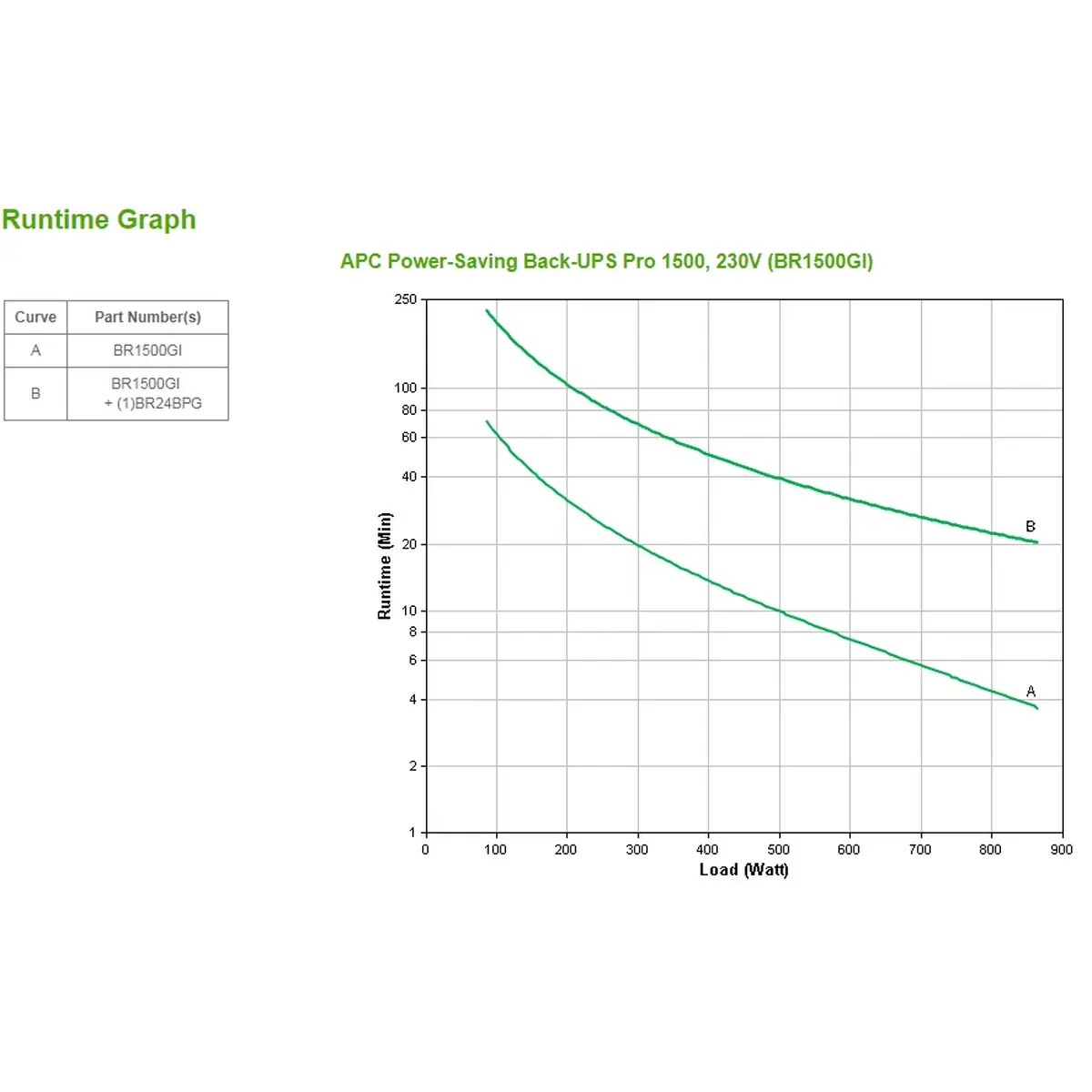

Typical backup time at full load

3.7 min

Typical backup time at half load

12.4 min

Battery life (max)

5 year(s)

Battery recharge time

8 h

Hot-swap battery

Yes

Automatic battery test

Yes

Cold start

Yes

Replacement battery cartridge

APCRBC124

Product colour

Black

Display type

LCD

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-15 – 40 °C

Operating relative humidity (H-H)

0 – 95%

Storage relative humidity (H-H)

0 – 95%

Operating altitude

0 – 9000 m

Non-operating altitude

0 – 15000 m

Compliance certificates

RoHS

Certification

A-tick, C-tick, CE, GOST, GS Mark, Telepermit, TUV, REACH, PEP, EOLI, NEMKO-GS

Cables included

Phone (RJ-11), USB cable

Manual

Yes

Sustainability certificates

ENERGY STAR

Width

112 mm

Depth

380 mm

Height

301 mm
