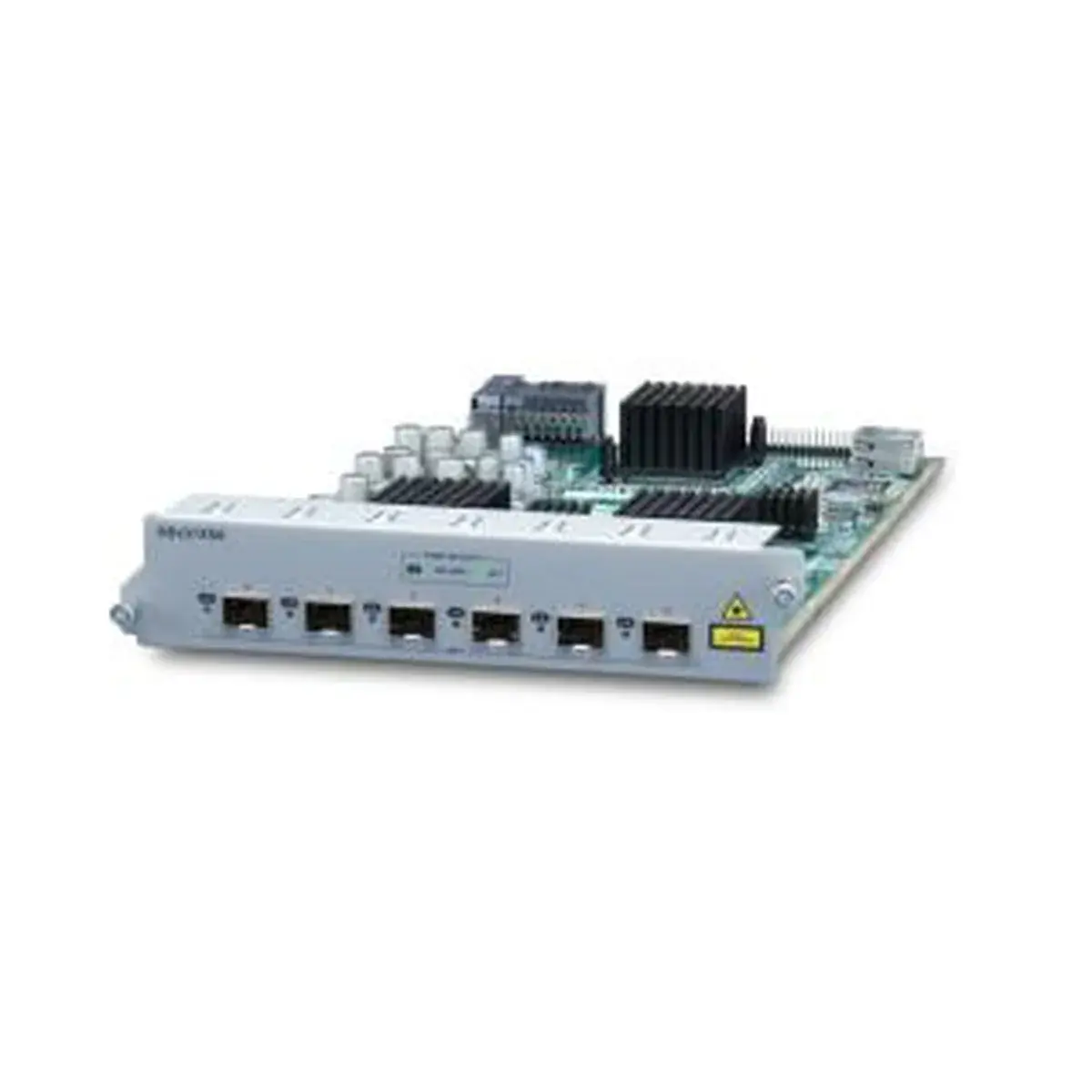

The product description is for an Allied Telesis AT-SBx31XS6 network switch module designed to provide high-speed Ethernet LAN connectivity across various data rates including 10, 100, 1000, and 10000 Mbit/s. It supports multiple networking standards such as IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3z, ensuring compatibility with diverse networks.
The switch features full duplex operation, auto MDIX IEEE support, jumbo frames capability, link aggregation functionality, and offers robust security through algorithms like 802.1x RADIUS and SSH-2. With up to 32,000 entries in its MAC address table, it provides ample space for managing device addresses efficiently.
Additionally, it includes six fiber optic ports equipped with SFP+ connectors, supporting speeds of up to 10000 Mbit/s over long distances via optical fibers. This network switch adheres to strict safety certifications from organizations like CULUS, TUV, C-TICK, CE, FCC Class A, EN55022 Class A, CISPR Class A, ICES 003 Class A, UL60950-1 (TUV), UL60950-1 (CULUS), EN60825, EN55024, RoHS, and complies with dimensions that measure at 206.7 x 313.2 x 40.6 mm and weighs approximately 1.06 kg.
Essential specs
- Model: Allied Telesis AT-SBx31XS6 network switch module
- Weight: 1.06 kg
- Dimensions (W×D×H): 206.7 x 313.2 x 40.6 mm
- Typical power consumption: 54.8 W
- sku: AT-SBX31XS6
- Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
- Full duplex: Yes
- Flow control support: Yes
